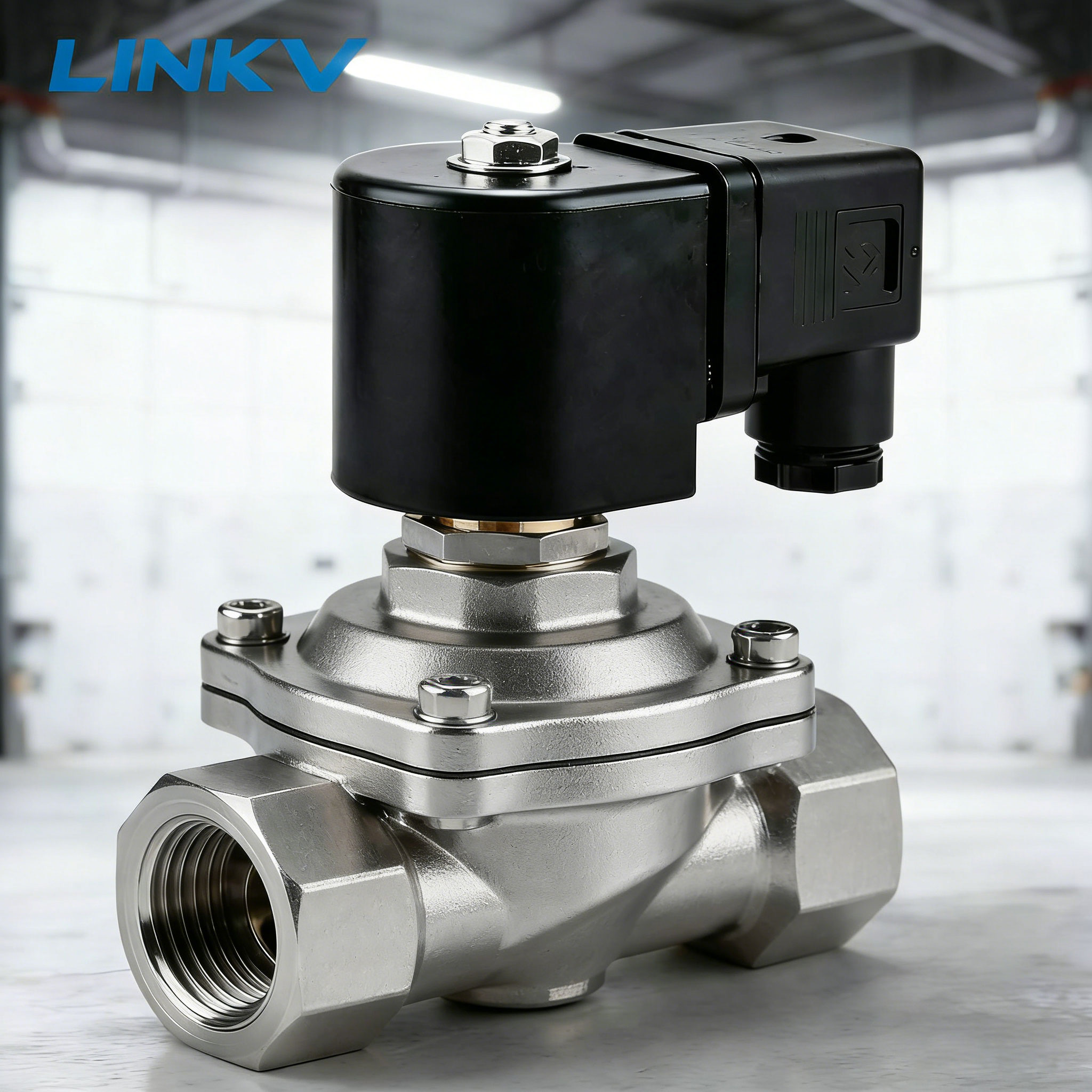

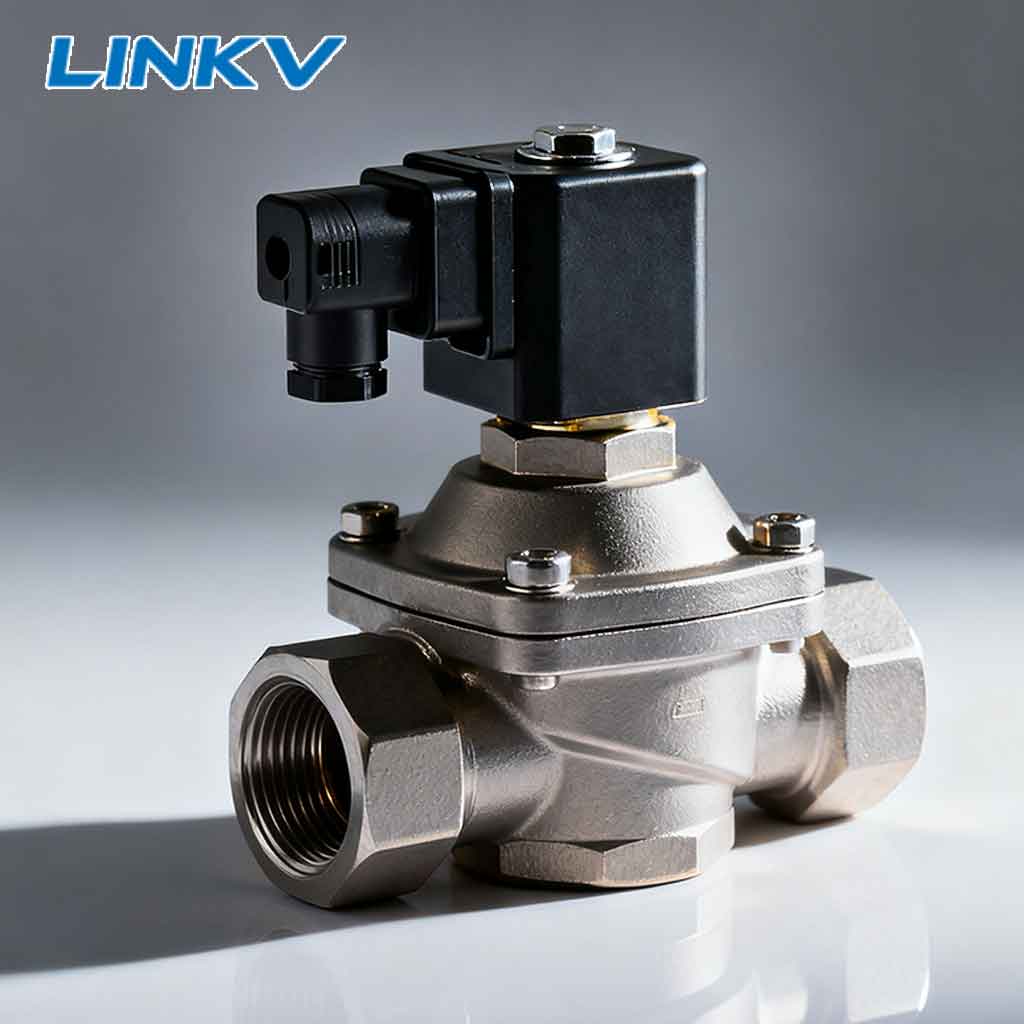

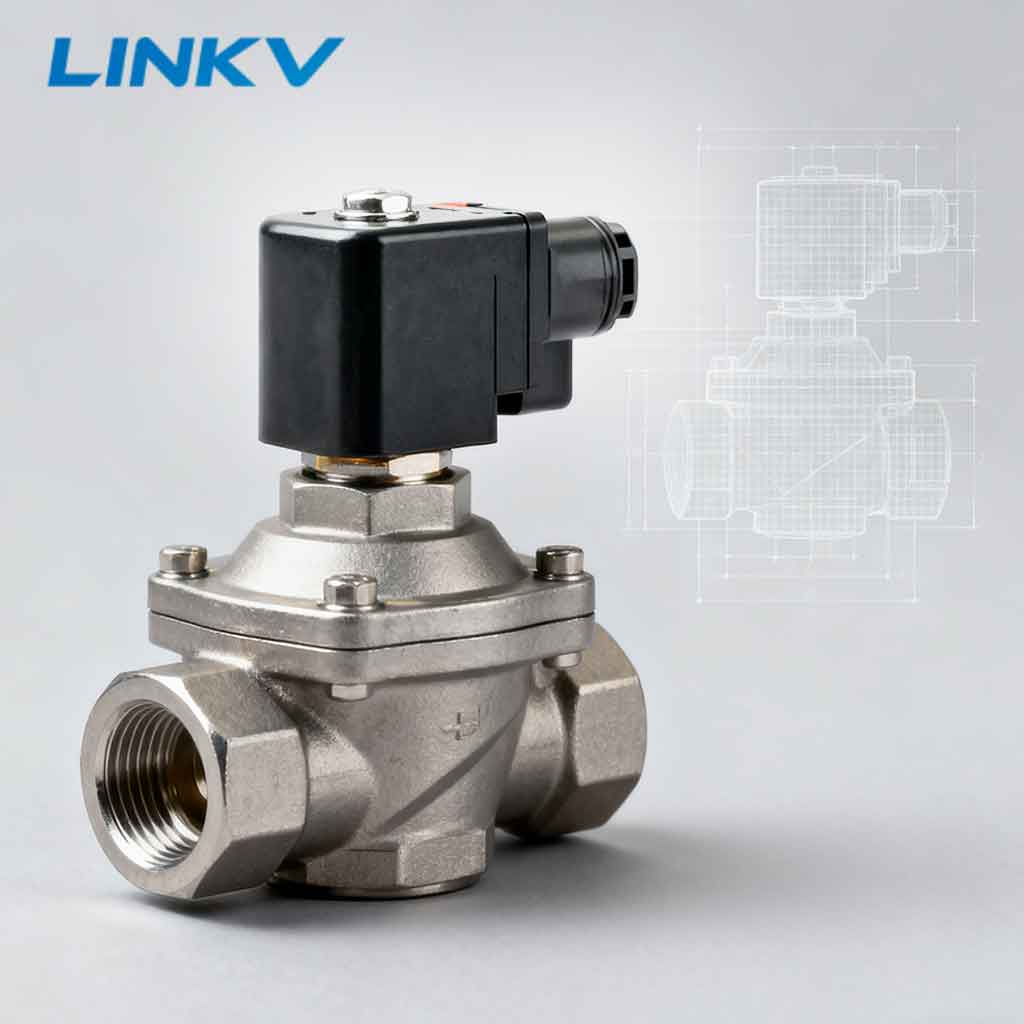

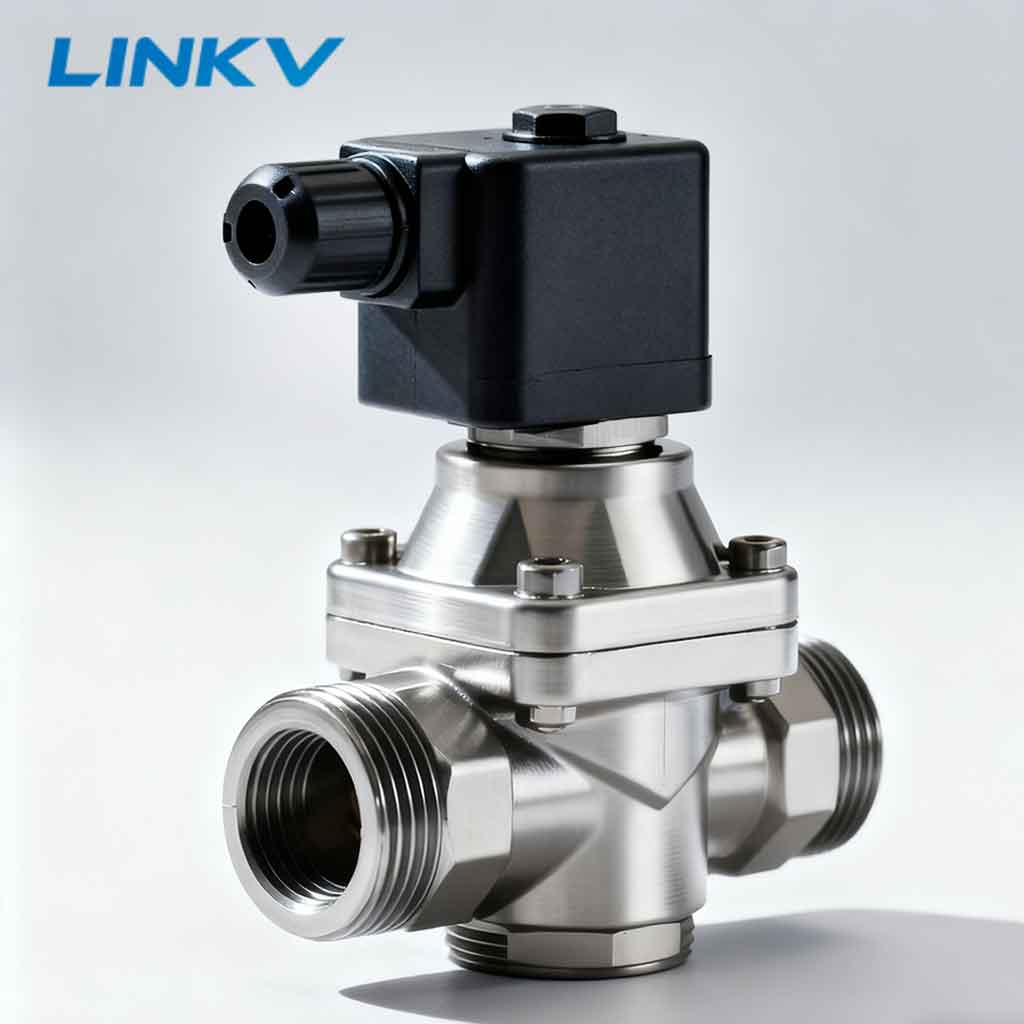

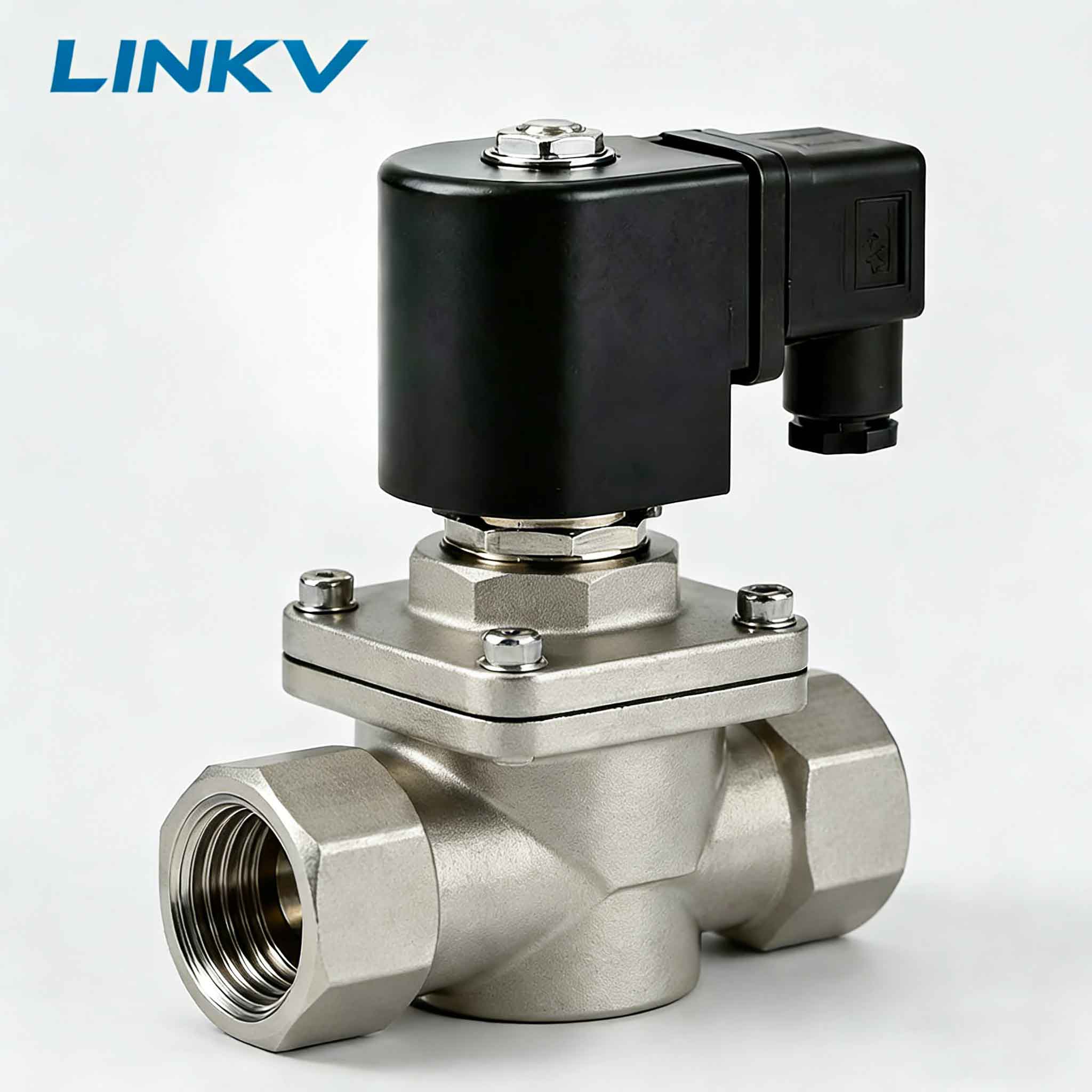

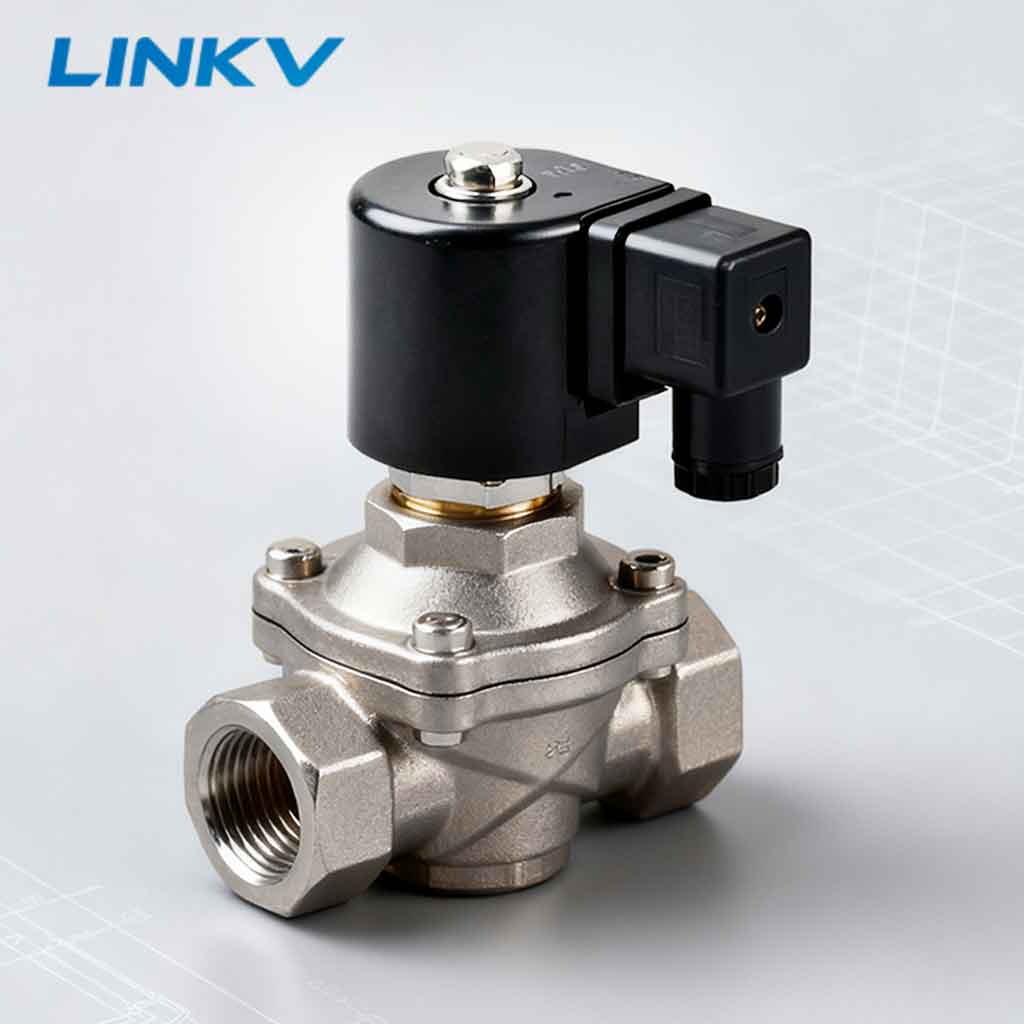

Low Power Waterproof Solenoid Valve-12V/24V Mini Type for Irrigation System

Product Uses

Use 1:

Water Treatment & Dosing Systems – Controls raw water, softened water, chemical dosing (chlorine, coagulants), and backwash flows. Stainless steel body resists corrosion from aggressive chemicals, while fast response ensures precise injection timing.

Use 2:

Food & Beverage Processing – Used in CIP (clean-in-place) lines, liquid filling machines, steam injection, and pasteurizers. FDA-compliant seals and stainless steel construction prevent contamination and meet hygienic standards.

Use 3:

Medical & Laboratory Equipment – Controls gas (oxygen, nitrogen) and liquid flow in analyzers, ventilators, and dialysis machines. Low power consumption and silent operation (< 35 dB) are critical for patient‑near and noise‑sensitive environments.

Use 4:

Industrial Automation & Pneumatic Systems – Manages air, water, or light oil for cylinder control, spray systems, and lubrication circuits. Direct-acting models work reliably at zero pressure, ideal for gravity-feed or suction-line applications.

Use 5:

Marine & Offshore Equipment – Resists saltwater corrosion and vibration. Used in bilge water treatment, fuel transfer, cooling water systems, and desalination units. IP67 coil options allow deck or engine room installation without enclosure concerns.

Technical Parameters

FAQ

Q1: What is the difference between direct-acting and pilot-operated solenoid valves?

A: Direct-acting operates from 0 bar to full rating, ideal for vacuum or low pressure. Pilot-operated requires a minimum pressure drop (typically 0.5 bar) to open, but handles higher flow rates at lower coil power.

Q2: Can your stainless steel solenoid valve be used with steam at 160°C?

A:Yes, with PTFE seals and high-temperature coil (Class H). For continuous steam service up to 180°C, choose our HT series with a cooling fin and special plunger guide. Confirm temperature and pressure with our engineers.

Q3: Do you provide NPT or BSP threads? And what about flanged connections?

A:We offer NPT, BSPP (G), BSPT, and metric threads as standard. Flanged ends (DN15–DN50) are available upon request for larger sizes or high-pressure applications. Minimum order may apply for flanged types.

Q4: What is the typical lifespan of your solenoid valve?

A:Under rated conditions (clean media, proper voltage, no water hammer), our valves exceed 5 million cycles. With PTFE seals and AC coils, expected life is 2–3 years in continuous cycling applications. We provide 2-year warranty.

Q5: Can the coil be replaced without removing the valve from the pipeline?

A: Yes, all our solenoid valves have interchangeable coil systems. Simply loosen the retaining nut, remove the old coil, and snap on the new one – no need to shut off the process or break pipe connections.
