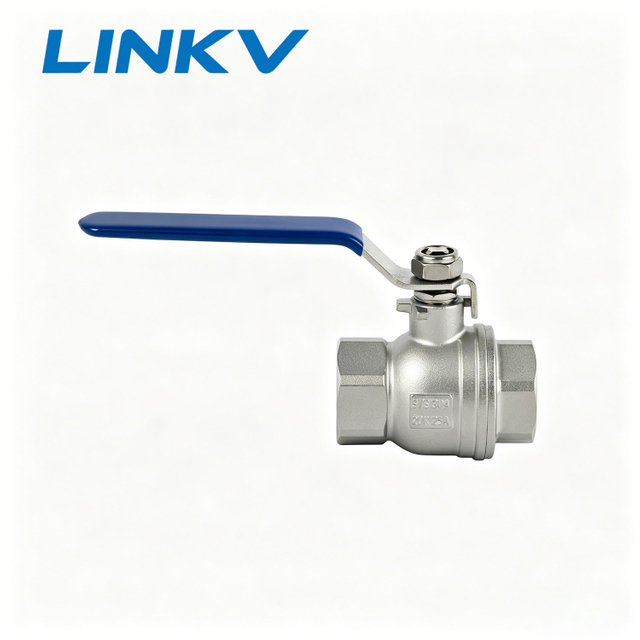

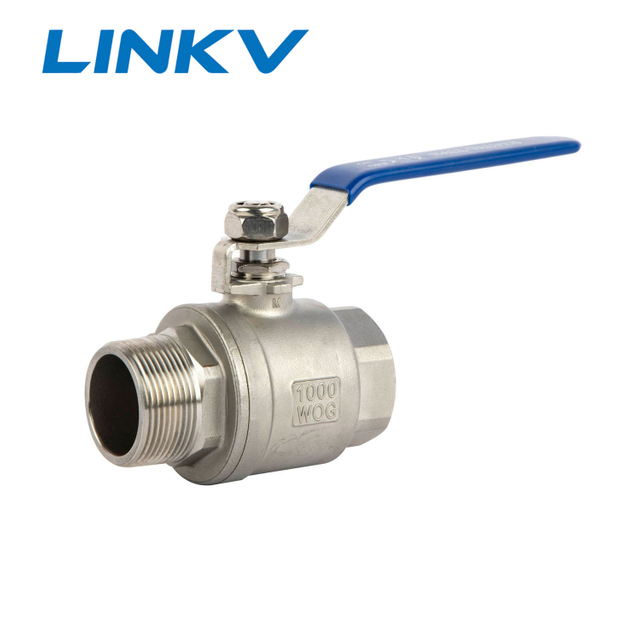

When sourcing reliable fluid control solutions, selecting a premium One-Piece Ball Valve is essential for system integrity. LINKV offers a comprehensive range of these high-performance valves for demanding industrial environments. Our products feature a robust, compact design with a reduced port construction. This single-piece cast body significantly minimizes potential leak paths by eliminating joints. Manufactured from high-grade SS304 and SS316 stainless steel, our valves deliver superior corrosion resistance and exceptional durability.
Our extensive catalog provides versatile fluid control options tailored to diverse piping requirements. Whether upgrading an existing pipeline or designing a new facility, our series offers the reliability you need. We encourage procurement managers and engineers to browse our specific models. You will easily find the perfect match for your operational demands.
The reduced port design provides a highly cost-effective and compact solution for industrial applications. The internal flow path is slightly narrower than the pipe diameter. Therefore, this 1-piece stainless steel ball valve is ideal when minor flow restriction is acceptable. It perfectly balances space optimization with budget constraints. This streamlined construction ensures reliable shut-off capabilities while maintaining a smaller footprint.
For critical measurement and control systems, our instrumentation-grade valves are precision-engineered to meet strict manufacturing tolerances. These specialized components withstand high-pressure environments while delivering accurate flow control. Their rugged, single-piece cast body eliminates joint leaks. This makes them a dependable choice for sensitive industrial instrumentation setups.
To assist B2B buyers and engineers, we provide detailed technical specifications for our one-piece ball valve catalog. Understanding material properties and pressure capabilities is vital. It ensures system compatibility, safety, and long-term operational success.
Our valves are cast from premium stainless steel grades to guarantee longevity in harsh environments. SS304 offers excellent general corrosion resistance suitable for water and mild chemicals. Meanwhile, SS316 includes molybdenum for enhanced resistance against chlorides, petrochemicals, and industrial solvents.
| Component | Material Option 1 (SS304) | Material Option 2 (SS316) |
|---|---|---|
| Valve Body | ASTM A351 CF8 | ASTM A351 CF8M |
| Ball | SS304 | SS316 |
| Stem | SS304 | SS316 |
| Seat | PTFE / RPTFE | PTFE / RPTFE |
We manufacture our stainless steel ball valves to accommodate a wide range of operational pressures. They also meet strict global piping standards. The table below outlines standard working pressure ratings, temperature ranges, and available end connections. This data will help you specify the right valve for your project.
| Specification | Details |
|---|---|
| Working Pressure | 800 WOG / 1000 WOG (PN63) |
| Temperature Range | -20°C to 150°C (PTFE) / up to 200°C (RPTFE) |
| Thread Connections | NPT, BSPT, BSPP, DIN2999 |
| Port Type | Reduced Port (Standard Port) |
Selecting the right manufacturing partner is just as important as choosing the right valve. LINKV stands out by offering a comprehensive, one-stop procurement solution. We back our products with industry-leading manufacturing capabilities and strict quality control.
With 17 years of professional global export experience, LINKV understands the rigorous demands of international markets. Authoritative international certifications validate our commitment to quality. These include ISO9001, SIL, CE, API607, TS, PED, and API 6D. This ensures every valve meets the highest global safety standards.
Located in Wenzhou, China's central valve industrial cluster, our facility features high-precision automated CNC production lines. We utilize advanced dual precision casting technology. This combines sand casting with high-precision silica sol investment casting. Our closed-loop quality control guarantees flawless valve bodies with superior structural integrity.
We address common B2B procurement pain points by offering a highly flexible Minimum Order Quantity (MOQ) policy. This accommodates small trial orders for standard products. Furthermore, our engineering team provides professional non-standard customization based on client drawings and samples. We ensure you get the exact fluid control solution required.
The robust construction and leak-resistant design of our valves make them highly versatile across multiple demanding sectors. They are widely trusted for their reliability and long service life in several key industries.
What is the difference between a 1-piece and 2-piece ball valve?
A 1-piece ball valve features a solid, single-piece cast body. This makes it highly compact and eliminates joint leaks. However, it typically has a reduced port design and cannot be disassembled for maintenance like a 2-piece valve.
What thread types are available for your stainless steel valves?
We offer a variety of standard thread types to suit global piping systems. These include NPT, BSPT, and BSPP. Custom threading options are also available upon request.
Do you support small trial orders for standard products?
Yes, LINKV implements a flexible MOQ policy. We welcome small trial orders for our standard stainless steel valves. This helps you verify our quality before placing bulk orders.
Can you manufacture custom ball valves based on our engineering drawings?
Absolutely. With our advanced CNC production lines and in-house R&D, we provide professional non-standard customization. Our team will manufacture valves according to your specific drawings and samples.
Are you ready to upgrade your fluid control systems with premium, leak-resistant components? As a leading One-Piece Ball Valve manufacturer, LINKV provides a one-stop procurement solution tailored to your industrial needs. Whether you require technical consultations, flexible trial orders, or custom OEM requests, our expert team is here to help. Contact our sales representatives today to request a competitive quote. Discover how our 17 years of export expertise can benefit your next project.
