Flanged Ball Valve Guide: Flange Facings, Pressure Classes & Selection Workflow

Of all the connection types available on industrial ball valves — threaded, socket weld, butt weld, wafer — the flanged end remains the default choice for oil & gas, chemical and water treatment projects. It bolts straight into the pipeline flange, allows in-line maintenance without cutting pipe, and matches the flange standards that EPC drawings are already built around.

But "flanged ball valve" is not one product. The term covers a matrix of flange facings, pressure classes, materials and valve standards — and getting one element wrong means the valve either never bolts up, or fails the pressure test that matters. This guide walks through every variable in plain language, then gives you a selection workflow you can apply to your next requisition.

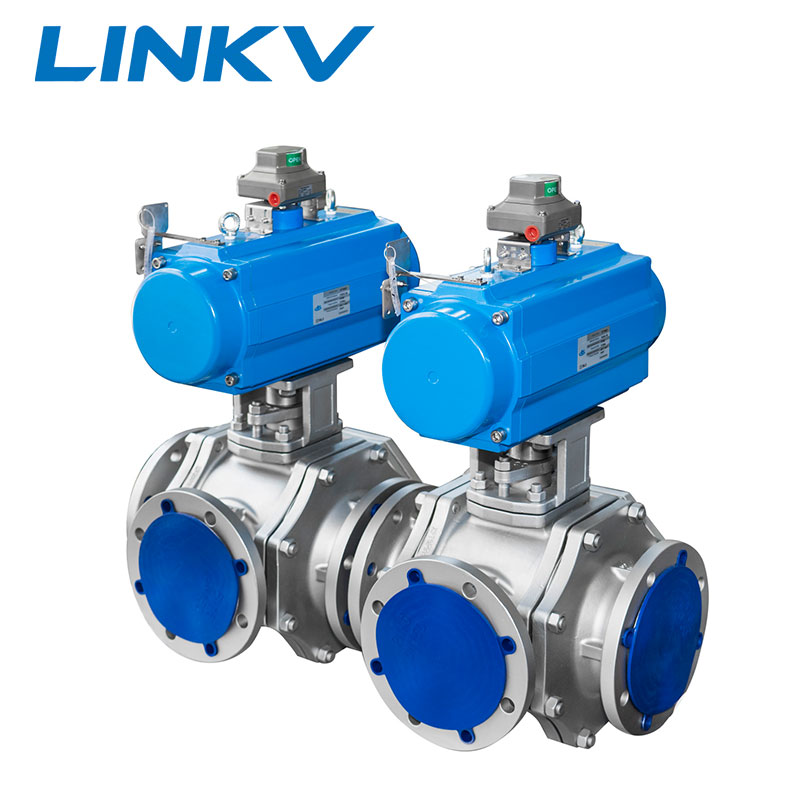

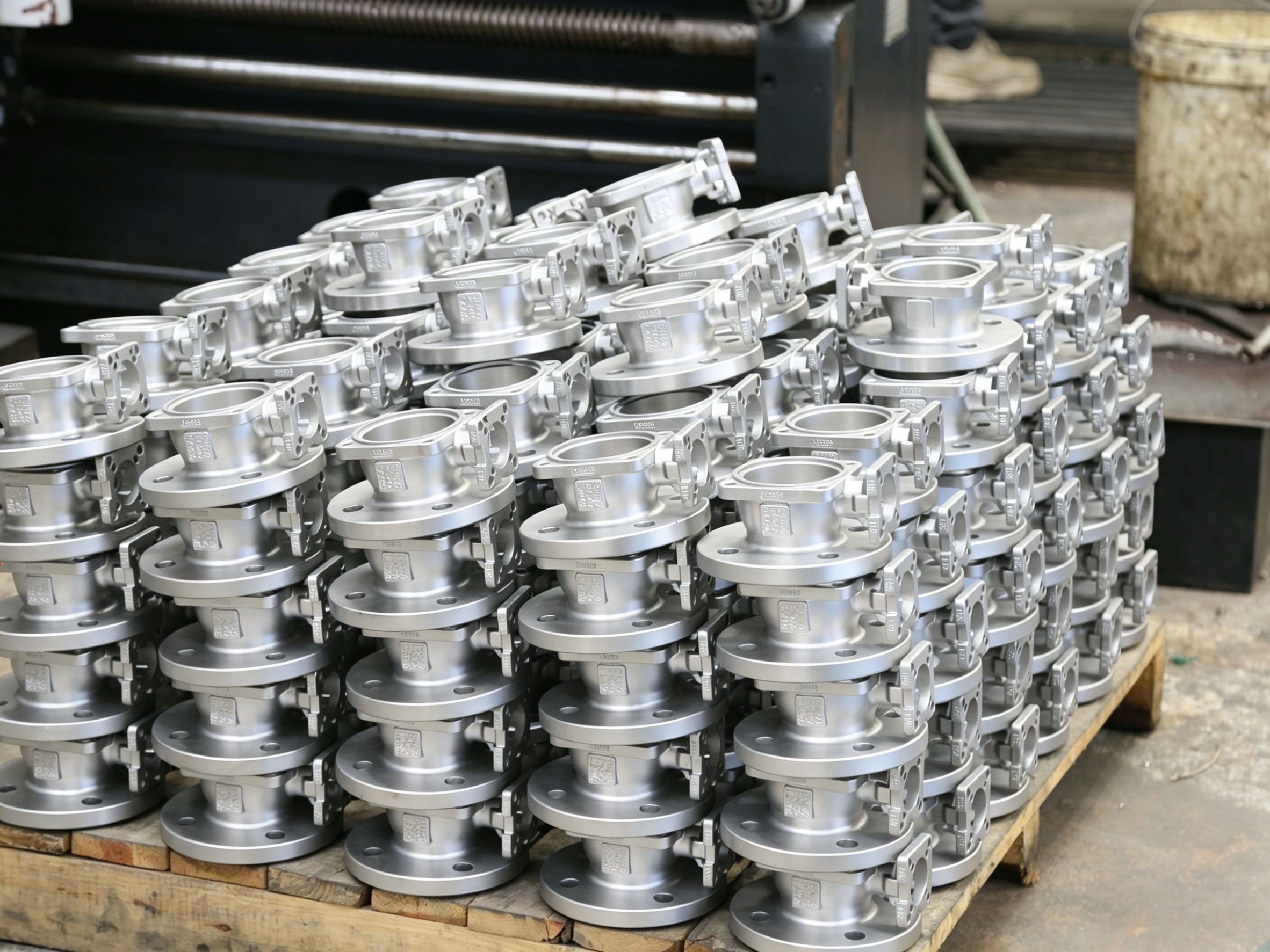

What Is a Flanged Ball Valve?

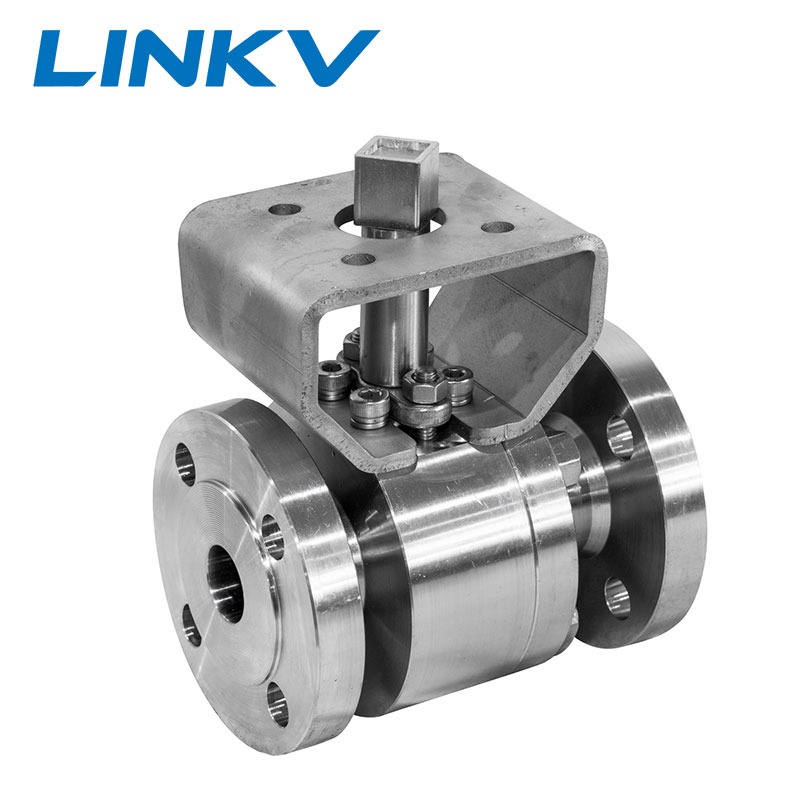

A flanged ball valve is a quarter-turn shut-off valve whose body ends terminate in integral or separate flanges drilled to a recognized standard — most commonly ASME B16.5 (NPS 1/2"–24") or EN 1092 / DIN for PN-rated flanges. The valve is installed between two matching pipeline flanges with gaskets and stud bolts, which means:

• Serviceable in-line: the valve can be removed without cutting or re-welding pipe

• Standardized interchangeability: any valve built to the same class and facing drops into the same flange bolt pattern

• Higher pressure capabilitythan threaded connections, without the field welding skill required by butt-weld ends

For pipeline isolation duties above roughly 2" nominal size, flanged ends dominate for exactly these reasons.

Flange Facings: FF, RF and RTJ

The sealing surface machined onto the flange face — the facing — determines the gasket type and, to a degree, the joint's pressure capability.

Three practical rules:

1. RF is the default assumption.If your datasheet is silent, Class 150/300 flanges are almost always raised face. The standard RF finish (125–250 µin AARH, the concentric "serrated" pattern) is designed to bite into spiral wound gaskets.

2. RTJ begins where RF gaskets struggle.Above Class 300, higher bolt loads compress soft gaskets unevenly; the machined metal ring of an RTJ joint seals metal-to-metal and handles thermal cycling far better.

3. Never mix facings without a spacer.An RF valve flange mated to an FF pipe flange concentrates all bolt load on the raised ring — a classic leak path created at the design stage.

Pressure Classes: What Class 150–600 Actually Means

The pressure class is not a pressure rating. It is a rating family: within a class, the allowable pressure falls as temperature rises, and varies with body material. Class 150 in stainless steel (Group 2.1, e.g. CF8M) is rated around 19.6 bar at ambient temperature — but only a fraction of that at 400 °C. Two consequences procurement engineers sometimes miss:

• Always read the pressure–temperature curve for your material group, not the class name. A Class 300 stainless valve at 300 °C may allow less pressure than the same class at ambient — your project engineer signs off against the curve, not the label.

• Class selection is driven by flange rating, not just the valve.The valve must match the pipeline flange class, so Class follows the piping class list of the project. A "stronger" valve than the line is wasted money; a weaker one is a process hazard.

For stainless steel flanged ball valves, the practical working range is:

The Standards That Matter

A flanged ball valve is governed by a stack of standards — knowing which applies lets you read any datasheet quickly:

• ASME B16.34— valve body wall thickness, pressure–temperature ratings by material group

• ASME B16.5— flange dimensions, facings, drilling for NPS 1/2"–24"

• ASME B16.10— face-to-face (FTF) and end-to-end dimensions, so valves from different manufacturers are dimensionally interchangeable

• ASME B16.25— butt-weld ends (for welded-end valves)

• API 608— ball valve design: full port/reduced port, fire-safe per API 607 testing, antistatic design

• ISO 5208 / API 598— shell and seat leak testing at the factory

When a supplier states "Class 300, RF, ASME B16.10 long pattern," all five documents above are implicitly in scope — and any of them can be checked on the drawings before order release.

Body Materials and Their Place in Selection

For most buyers reading this, CF8M is the workhorse; move to duplex when the service is marine or the chloride content demands it.

The Selection Workflow

Run the six steps in order; each eliminates a family of options.

1. Define the service: medium, design pressure, design temperature, and whether fire-safe or antistatic requirements apply (hydrocarbon service → yes).

2. Fix the pressure classfrom the piping class list — not from guesswork. Record the pressure–temperature rating check for your material group.

3. Fix the facingfrom the mating flange (RF unless specified otherwise; RTJ for Class 600+ and severe service).

4. Choose port type: full port when pigging or low pressure drop matters; standard port for cost-sensitive isolation duties.

5. Choose material and trim: body per corrosion assessment; seats and seals per temperature and chemical compatibility (PTFE, R-PTFE, PEEK, metal for elevated temperature).

6. State the standards explicitly on the PO: ASME B16.34 / B16.5 / B16.10, API 608 where applicable, and witnessed pressure testing per ISO 5208.

A Checklist Before You Release the PO

• Flange standard confirmed (ASME B16.5 vs EN 1092/DIN) and matches the line

• Facing matches mating flanges — no FF/RF mixing

• Pressure class verified against the pressure–temperature curve for the actual body material

• Face-to-face dimension (B16.10) confirmed against the piping isometric

• Seat material compatible with medium and temperature

• Fire-safe and antistatic requirements captured if hydrocarbon service

• Test documentation: ISO 5208 or API 598 reports required with the shipment

Where to Source Compliant Flanged Ball Valves

Flanged ball valves succeed or fail on dimensional compliance and material control — which is why the supplier question and the technical question can't be separated. Wenzhou Linkv Valve Co., Ltd. manufactures stainless steel flanged ball valves from Class 150 through Class 600 in CF8 and CF8M, produced in its own silica sol investment casting and sand casting facilities and verified with in-house spectrometer analysis and full-stage inspection. Every batch ships with pressure test reports and material traceability, and third-party inspection (SGS, BV, TÜV) is accepted at the pre-shipment stage — the documentation profile described in our guide to verifying a ball valve manufacturer.

Browse our flanged ball valve range or request a quotation with your class, facing and material requirements — our engineers will confirm compliance against your specification before pricing.

FAQ

Q1: What is the difference between Class 150 and Class 300 flanged ball valves?

Class refers to the flange and body rating family, not a fixed pressure. At ambient temperature in stainless steel, Class 150 is rated near 19.6 bar and Class 300 near 51.1 bar; both ratings fall with temperature. The class must always match the pipeline flange class.

Q2: Can I connect an RF valve flange to an FF pipe flange?

Not directly without a spacer or expanding gasket. The raised face concentrates bolt load on a smaller area of the flat mating face and is a common cause of joint leakage.

Q3: What face-to-face standard applies to flanged ball valves?

ASME B16.10 defines face-to-face and end-to-end dimensions, so valves from different manufacturers are dimensionally interchangeable — always confirm the "long pattern" (Series A) or short pattern on your datasheet.

Q4: Are flanged ball valves fire-safe?

Only when certified. Fire-safe capability (tested per API 607) is a design and test requirement, not an inherent property — specify it explicitly for hydrocarbon service.

Q5: FF, RF or RTJ — which should I choose for Class 600 gas service?

RTJ. Above Class 300, metal ring joints handle the bolt loads and thermal cycling far more reliably than soft gaskets on raised faces.
