When a process engineer specifies a "stainless steel ball valve," that three-word requirement opens a matrix of material grades, size ranges, connection types and seat chemistries. Choose correctly and the valve outlives the plant; choose by price alone and the first chloride excursion writes the failure report.
This guide explains what a stainless steel ball valve is, decodes the grade naming that confuses even experienced buyers, and closes with a selection table you can carry into your next requisition.
A stainless steel ball valve is a quarter-turn shutoff valve whose pressure-retaining components — body, bonnet, end caps and usually the ball itself — are manufactured from corrosion-resistant stainless steel instead of carbon steel or brass.
Five components do the work:
Body and ends: the pressure envelope, cast in CF8/CF8M or machined from wrought bar
Ball: stainless, precision ground and polished, full port or standard port
Seats: the sealing rings the ball closes against — almost always a polymer (PTFE family) or metal
Stem: transmits the quarter-turn, sealed by packing or O-rings
Packing / gasket system: the secondary seal against stem and body joint leakage
The steel choice matters most: it decides whether the valve survives your medium. The seat choice matters second: it decides whether it survives your temperature.
Stainless steel valve grades come in cast and wrought pairs with different names for nearly identical chemistry:
Wrought (bar/forging) | Cast (valve body) | Chemistry | Corrosion behavior |
|---|---|---|---|
304 / 304L | CF8 | 18Cr-8Ni | General atmospheric and chemical resistance; vulnerable to chlorides and stress corrosion |
316 / 316L | CF8M | 17Cr-12Ni-2.5Mo | The workhorse: added molybdenum resists chlorides, acids, and pitting — the default process grade |
316L / CF3M | — (low-carbon cast) | Low-carbon 316 | Weld-sensitive duties: resists intergranular corrosion after welding |
Duplex / Super Duplex | A890 grades | Cr-Ni-Mo balanced dual phase | Seawater, desalination, high-chloride aggressive service |
Three points buyers should internalize:
CF8M is the cast name for 316-type chemistry.A datasheet stating "CF8M body" and one stating "316 body" describe the same alloy family — one is cast, one is wrought. Castings per ASTM A351; wrought per ASTM A182/A276.
The "L" and low-carbon variants matter only where welding occurs— for threaded and flanged assemblies, standard grades are fully adequate.
The chloride threshold is the dividing line.304 fails in seawater and many brackish applications; 316/CF8M handles moderate chlorides; seawater duty belongs to duplex.
A useful shorthand is the Pitting Resistance Equivalent (PREN): 304 ≈ 18, 316 ≈ 24, super duplex ≈ 40. If your service's chloride content pushes the required PREN above what the grade delivers, no amount of good manufacturing will save the valve.
Stainless steel ball valves span DN15 to DN300 (NPS 1/2"–12") in the range most projects need, with larger sizes available as engineered items. The connection menu:
Connection | Where it fits |
|---|---|
Threaded (NPT / BSP / ISO 228) | NPS 2" and below, utilities and maintenance-friendly installations |
Socket weld | NPS 2" and below, permanent leak-tight joints |

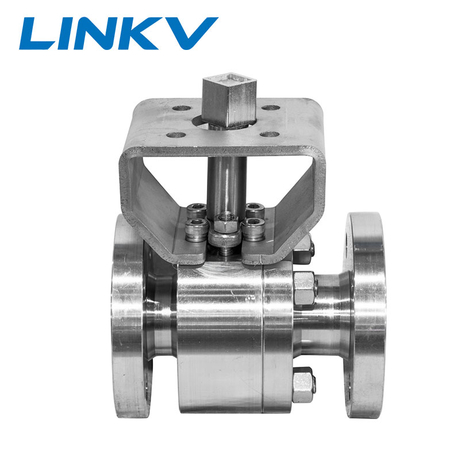

Flanged (ASME B16.5 / EN 1092) | NPS 2" and above, Class 150–600 — see our flanged ball valve guide |
Wafer / lug | Space-constrained isolation between pipeline flanges |
Butt weld | Process lines requiring welded integrity |

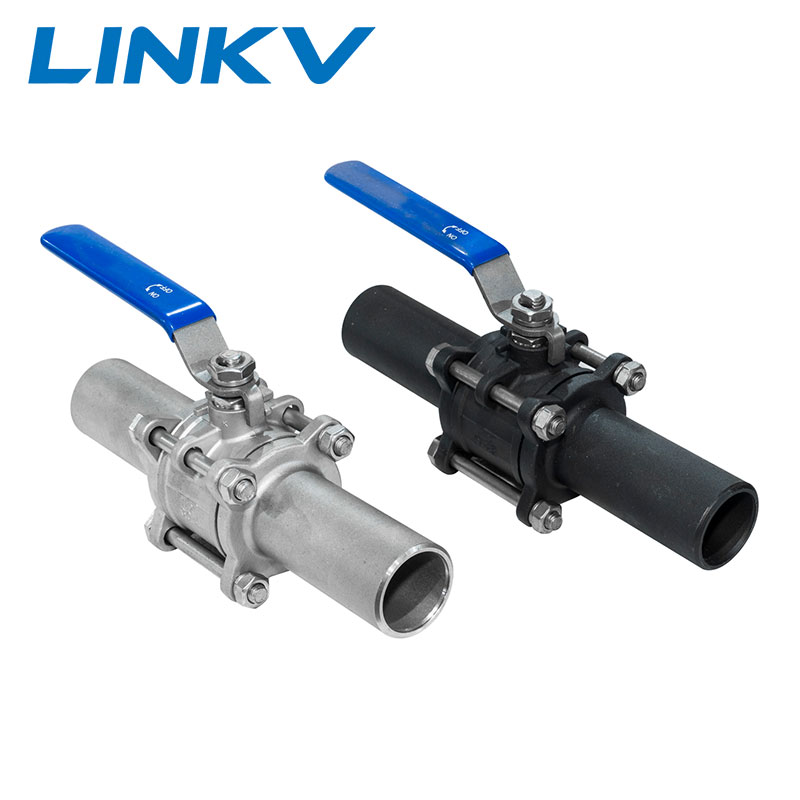

Structurally, 2-piece and 3-piece bodies dominate: the 3-piece design allows seat and seal replacement in-line, buying back maintenance labor over the valve's life.
The seat decides your temperature and chemical window:
Seat | Typical range | Notes |
|---|---|---|
PTFE | –30 °C to +200 °C | Universal chemical resistance, economical |
R-PTFE (glass-filled) | –30 °C to +250 °C | Higher pressure and wear resistance |
PEEK | up to +300 °C | Demanding chemical and thermal service |
Metal (Co-Cr / stainless) | +300 °C and beyond | Fire-safe, severe service, higher torque |
Fire-safe certifications (API 607) require specific seat-and-seal architecture — specify explicitly rather than assuming.
Water treatment and desalination: CF8M standard, duplex for seawater
Chemical processing: grade matched to chloride and acid profile; seat chemistry matched to medium
Pharmaceutical and food & beverage: stainless bodies with compatible surface finishes and food-contact-compliant seals
Oil & gas utilities and downstream: stainless for corrosive streams, fire-safe trims where hydrocarbon service applies
Marine and coastal installations: 316 minimum, duplex preferred for immersion
Your condition | Recommended grade | Recommended construction |
|---|---|---|
Clean water, utilities | 304 / CF8 | Floating, threaded or flanged, PTFE |
Chemical with moderate chloride | 316 / CF8M | Floating (small) or trunnion (large), R-PTFE |
Seawater / high chloride | Super duplex | Trunnion, flanged, metal or engineered seats |
High temperature | 316 / CF8M | Metal seats, fire-safe trim |
Food / pharma contact | 316L | Sanitary-compatible design, compliant seals |
A grade name on a datasheet means nothing without verification — which is why material control separates reliable valve suppliers from the rest. Wenzhou Linkv Valve Co., Ltd. produces stainless steel ball valve bodies from its own silica sol investment casting (precision grades CF8, CF8M) and sand casting lines in Wenzhou, verifies every heat with in-house spectrometer analysis before machining, and ships each batch with material traceability and ISO 5208 test reports. Standard catalog valves, OEM specials from drawings, and project batch supply are all produced under the same material control system. Request a quotation with your grade, size and seat requirements, or see our flanged ball valve range for Class 150–600 project service.
Q1: What is the difference between 304 and 316 ball valves?
Molybdenum. 316 (CF8M) adds ~2.5% Mo, substantially improving resistance to chlorides, pitting and acids. 304/CF8 suits general service; chlorinated or coastal duty requires 316 as a minimum.
Q2: Is CF8M the same as 316?
Chemically, yes — CF8M is the cast designation for 316-type alloy per ASTM A351. The difference is product form: CF8M is a casting, 316 typically refers to wrought bar or forging.
Q3: Can stainless steel ball valves be used for seawater?
316 resists only moderate chloride exposure. For continuous seawater duty, specify duplex or super duplex (ASTM A890) bodies.
Q4: What temperature can PTFE seats handle?
Standard PTFE to about 200 °C; glass-filled R-PTFE to about 250 °C; above that, PEEK or metal seats are the correct choice.
Q5: Do you supply stainless steel ball valves for food contact?
Yes — with 316-grade bodies, compatible surface finishes and food-contact-compliant seat materials; specify the requirement at inquiry so the correct seal system is quoted.
