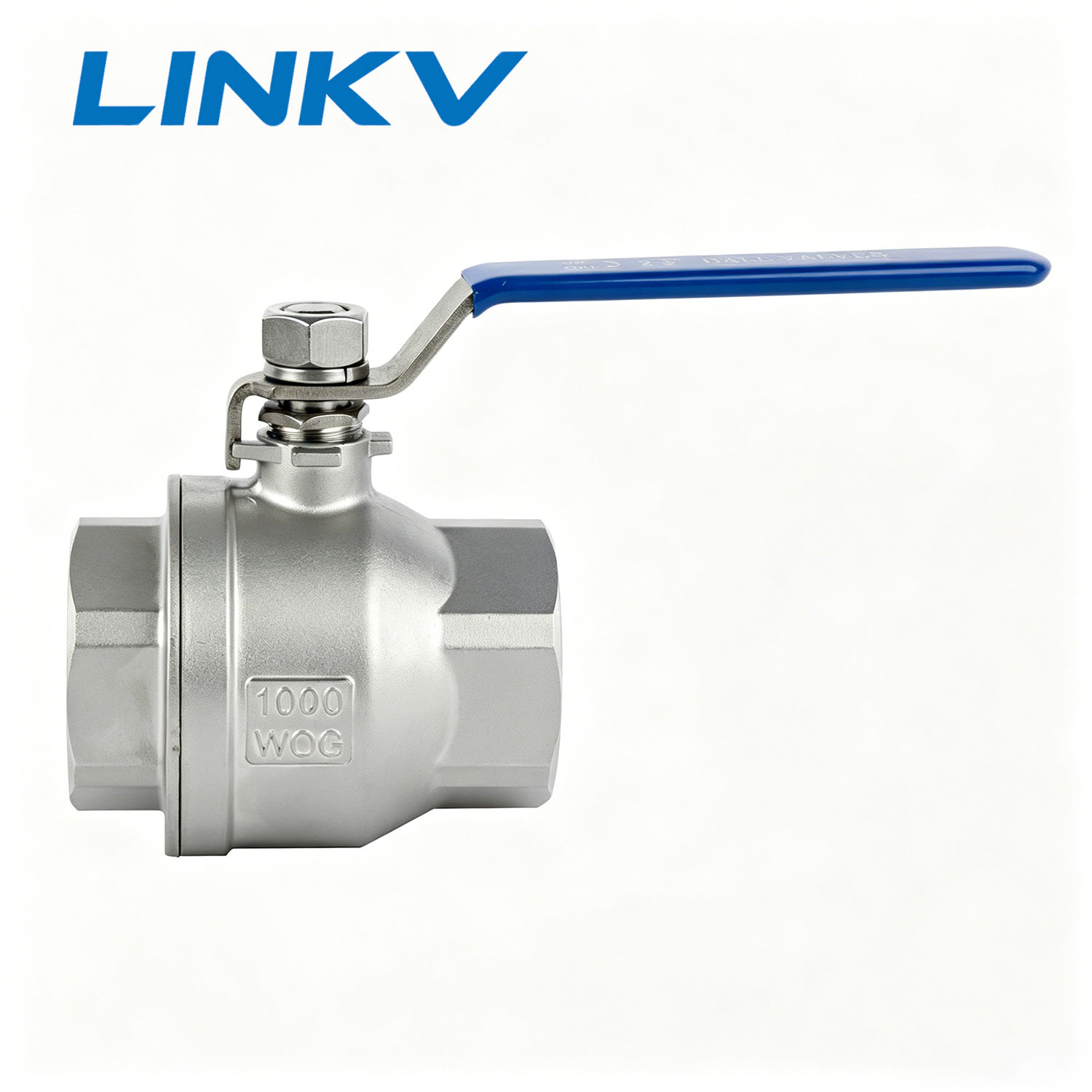

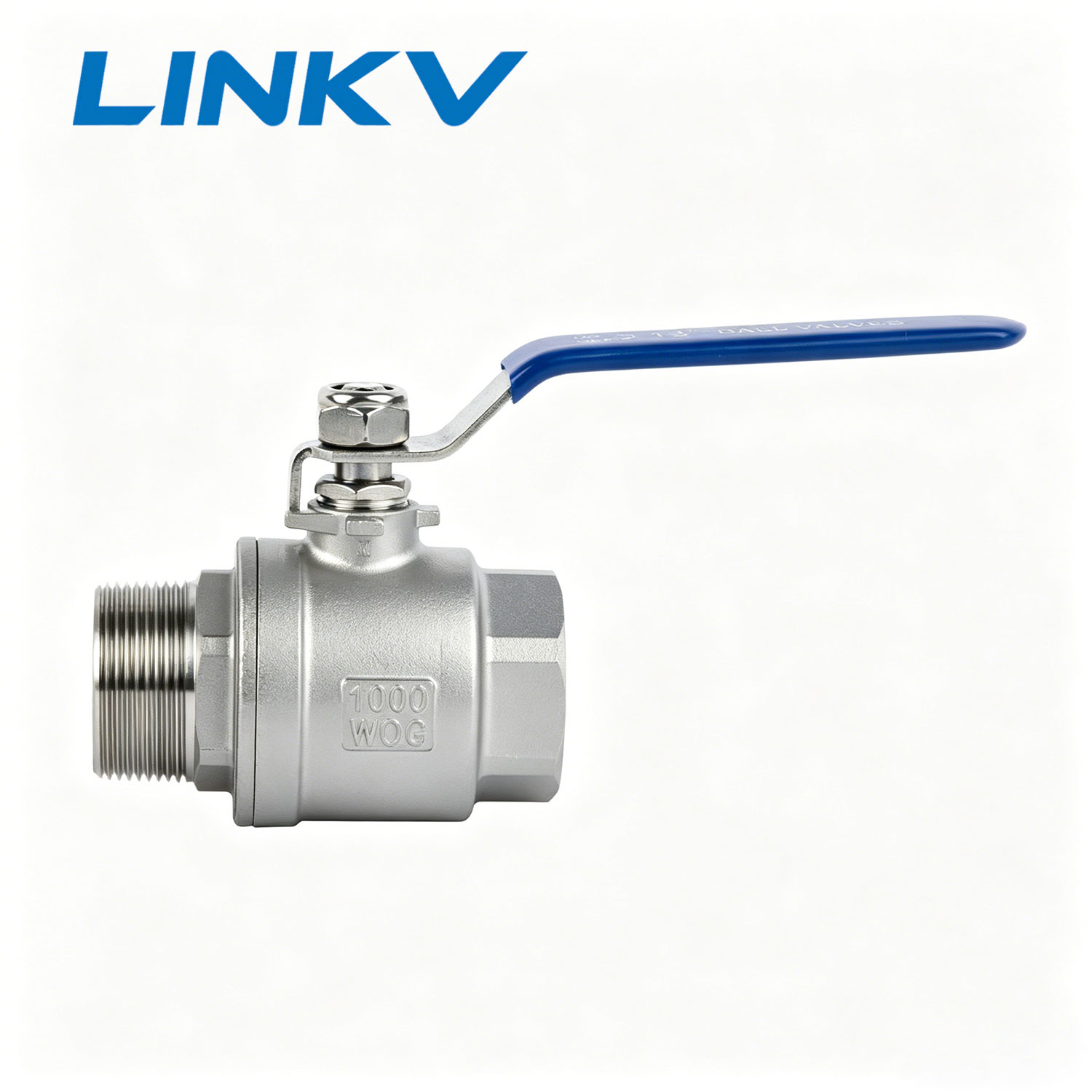

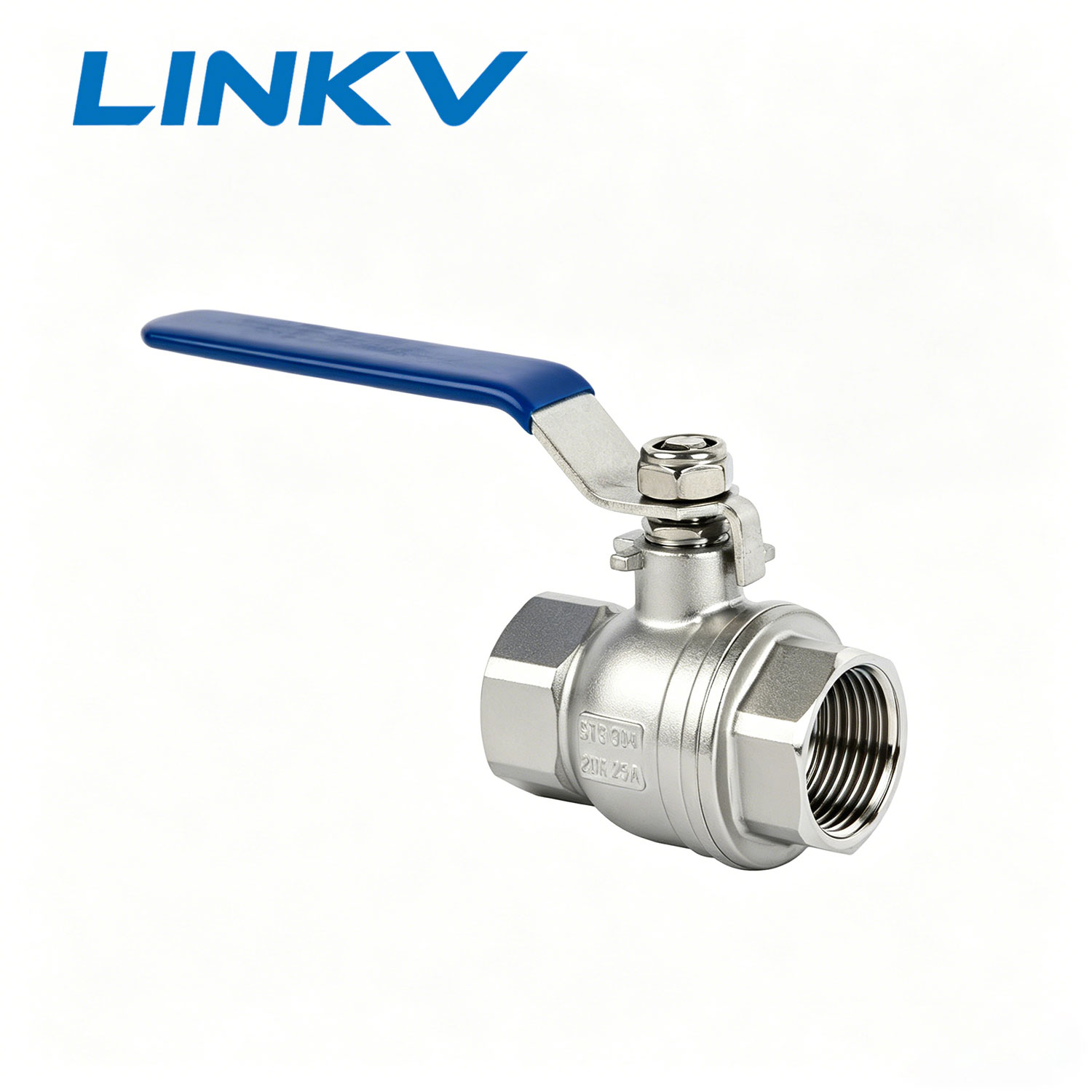

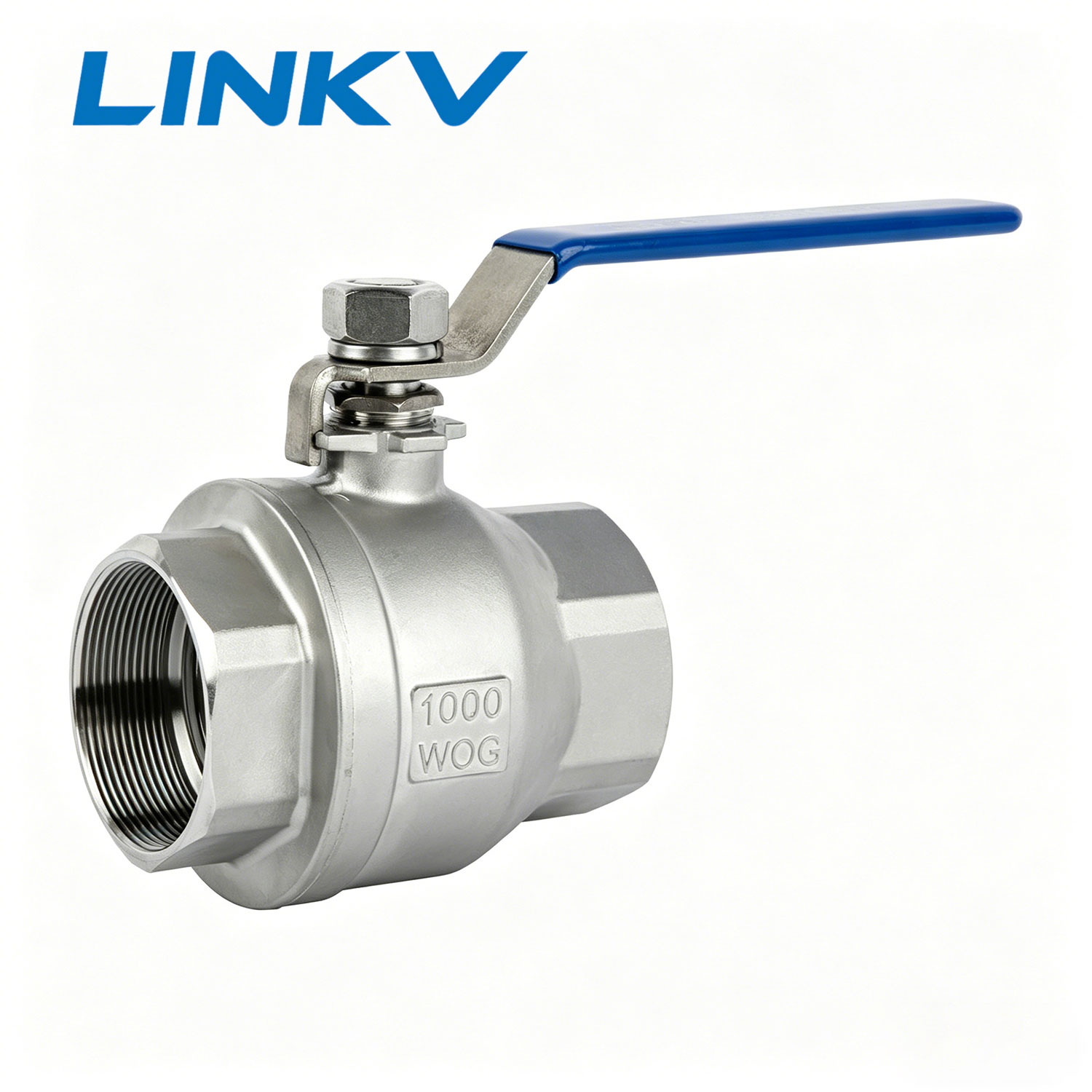

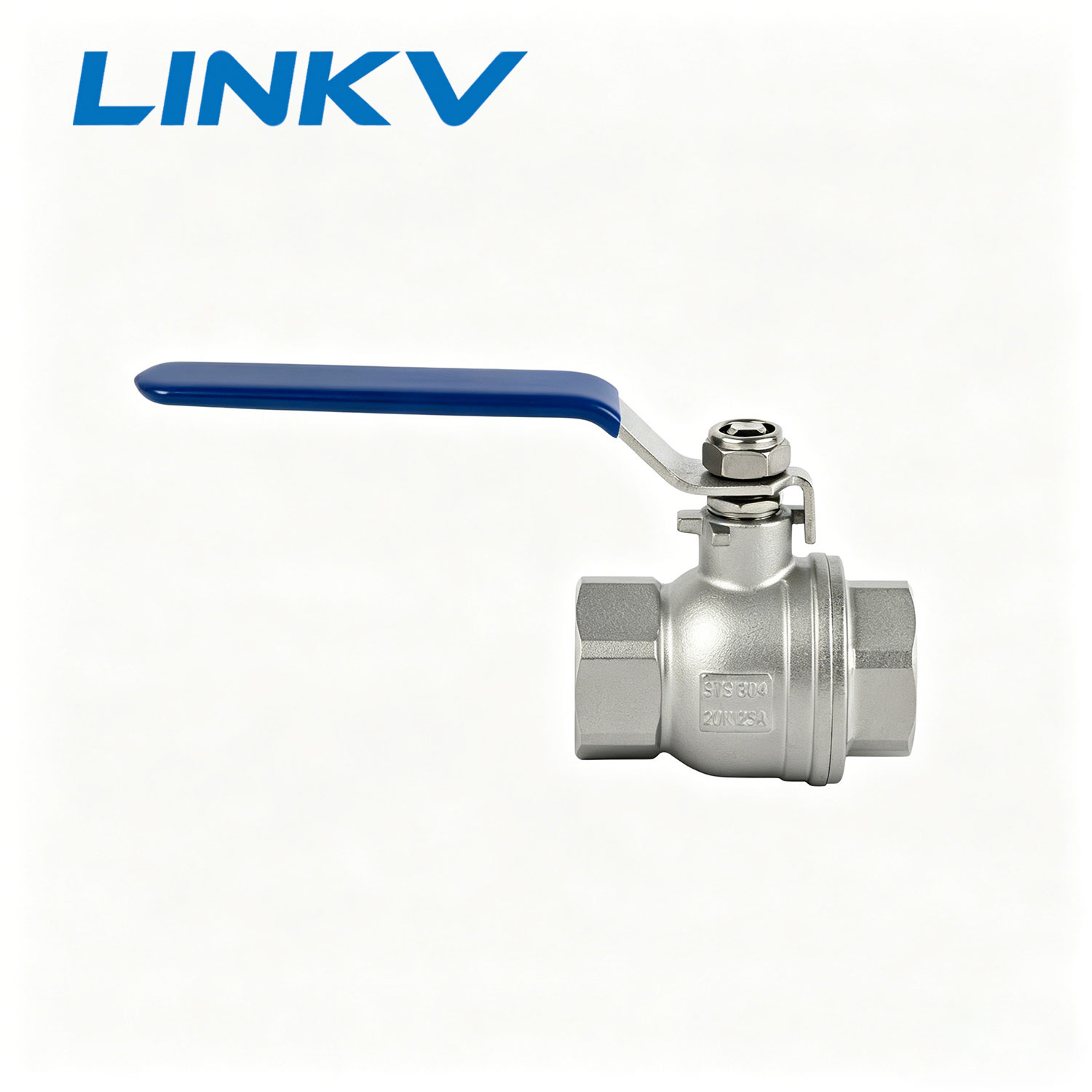

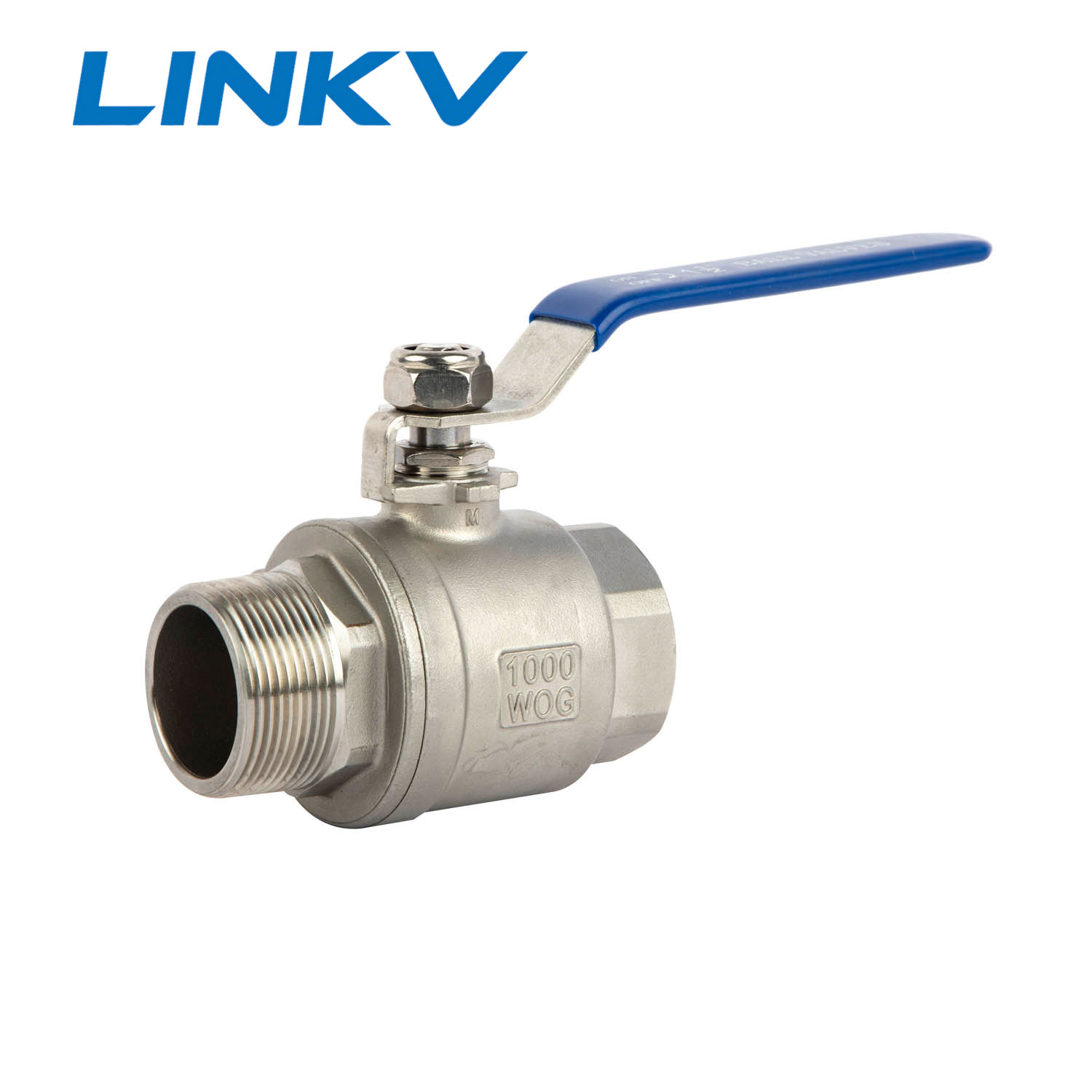

Stainless Steel One Piece Valve, One Piece Ball Valve for Water Systems, Compact and Corrosion Resistant One Piece Ss Ball Valve

Compact One Piece Ball Valve Design and Commercial Applications

The stainless steel one piece ball valve features a monoblock body design that delivers a compact footprint compared to multi-piece alternatives. Built to ANSI B16.34 and API 608 standards, this valve is engineered for business operations where space efficiency and reliable shut-off are required. The single-piece body construction eliminates body joint leakage paths and reduces the overall installation envelope.

Typical Applications in Commercial Systems

This one piece ball valve is commonly installed in water distribution networks, building plumbing systems, irrigation lines, HVAC equipment, and light industrial process lines. It handles clean water, compressed air, and non-corrosive gases across municipal, commercial, and light industrial settings. The compact dimensions make it suitable for installations where piping space is constrained.

Corrosion Resistant Stainless Steel One Piece Valve Materials and Structure

Investment casting is used to produce the valve body, ensuring uniform material structure and precise dimensional control. The blow-out proof stem design prevents stem ejection under internal pressure, contributing to operational safety. The lever handle provides quarter-turn operation for quick open-close action.

Component Material Specifications

One Piece Ss Ball Valve Technical Specifications and Dimensions

The valve is available with female thread ends in NPT, BSPT, and BSPP configurations. All dimensions are provided in millimeters. The standard configuration includes a manual lever handle with optional locking capability for commercial procurement requirements.

Dimensional Data

Performance Parameters

One Piece Ball Valve for Water Systems Quality Assurance

Every valve is hydrostatically shell tested at 1.5 × rated pressure and seat tested at 1.1 × rated pressure per API 598 requirements. Positive Material Identification confirms material composition matches order specifications.

Testing and Traceability

Each production batch is assigned heat numbers for material traceability. Dimensional inspections are conducted at key machining stages. The manufacturing facility operates under ISO 9001 quality management system guidelines, with documented inspection records available for enterprise customers upon request.

Compact Ss Ball Valve Procurement and Selection Information

For business buyers selecting valves for water systems, sizing is typically determined by matching the valve nominal size to the pipe diameter. The full-bore configuration minimizes pressure loss across the valve, which supports system efficiency in recirculation and distribution applications.

Ordering Specifications

When requesting quotations for commercial procurement, include the following details: nominal size, body material grade (CF8 or CF8M), seat material preference, thread type, quantity required, and any optional features such as lockable handles or custom tagging. Standard packaging protects threads and sealing surfaces during transit and storage.

FAQ

What temperature range can a stainless steel one piece ball valve handle?

With standard PTFE seats, the operating temperature range is -20°C - 180°C. The actual working pressure at elevated temperatures should be derated according to the material temperature-pressure curve. PTFE provides good chemical compatibility across most water and general service applications within this range.

Is a 1-piece ball valve suitable for corrosive media?

The corrosion resistance depends on the body material and the specific medium. CF8 (304 stainless steel) handles water, mild chemicals, and most food-grade applications. CF8M (316 stainless steel) provides additional resistance for environments with chlorides or moderately corrosive chemical exposure. Users should verify compatibility with their specific fluid chemistry.

How does a 1-piece ball valve compare to a 2-piece ball valve?

The 1-piece design has a smaller overall footprint and fewer potential leak points because the body is a single casting. It is typically more economical for general service applications. The 2-piece design allows disassembly for in-line maintenance and is available in larger sizes and higher pressure classes. Selection depends on application requirements, space constraints, and maintenance preferences in business operations.
