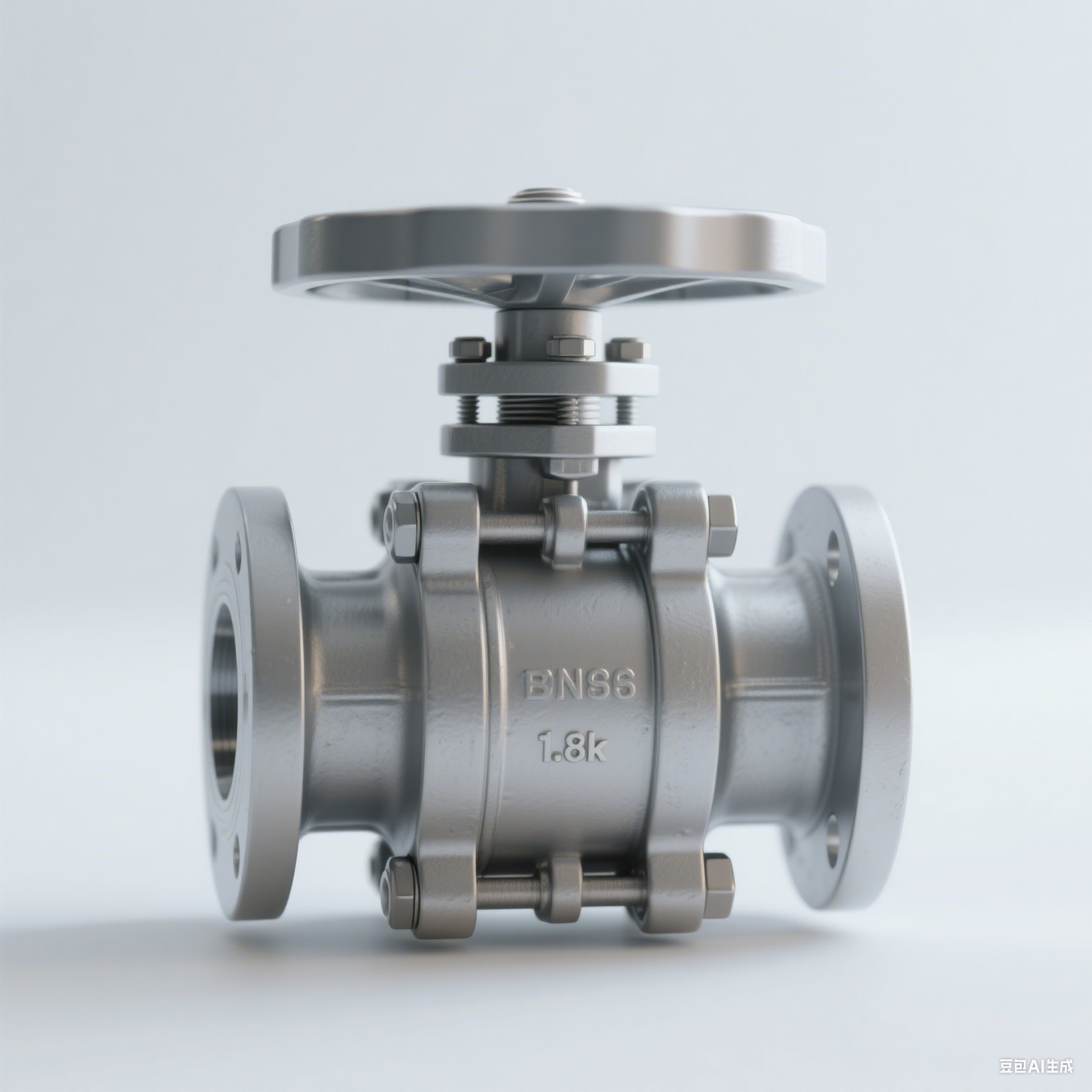

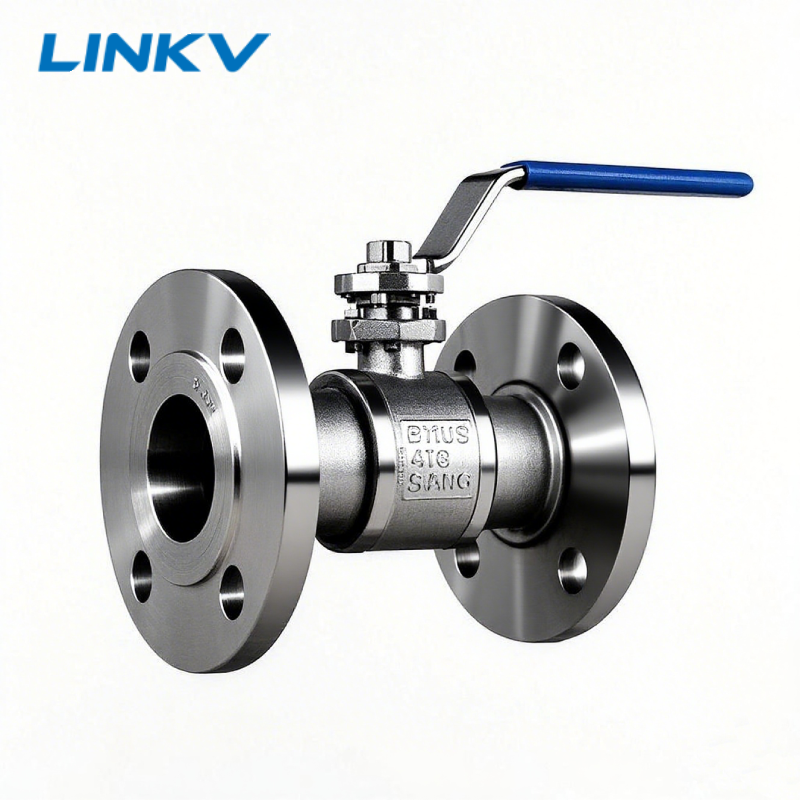

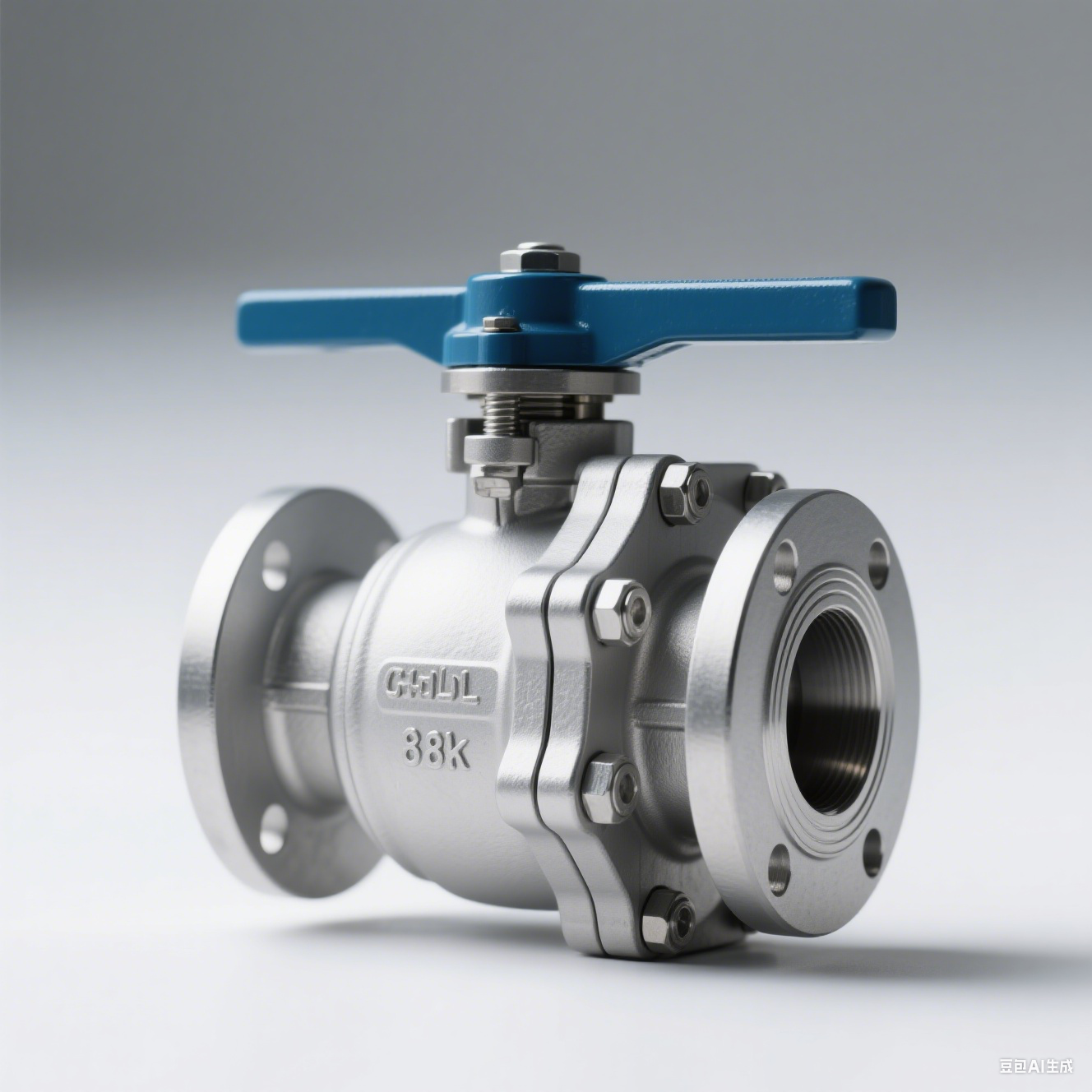

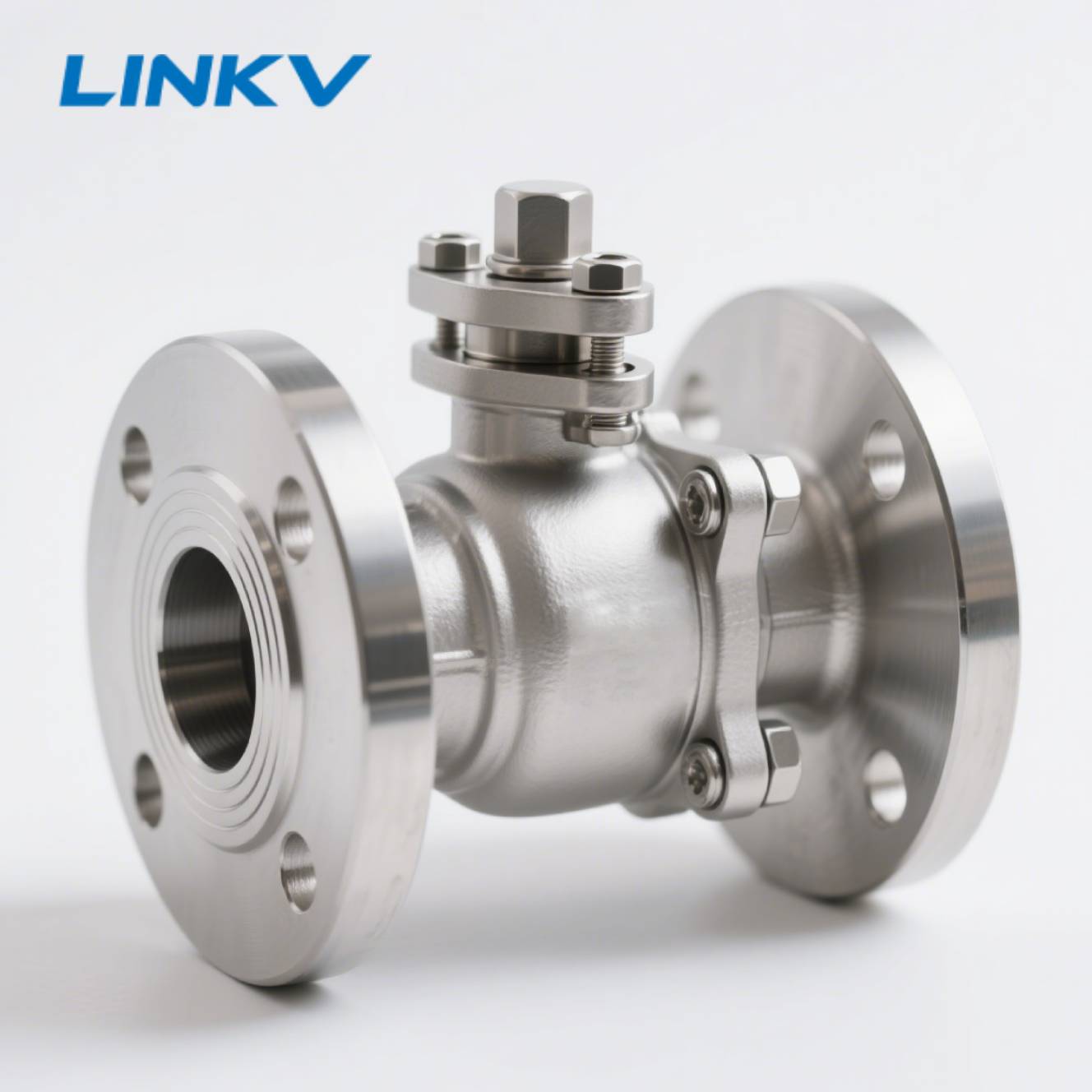

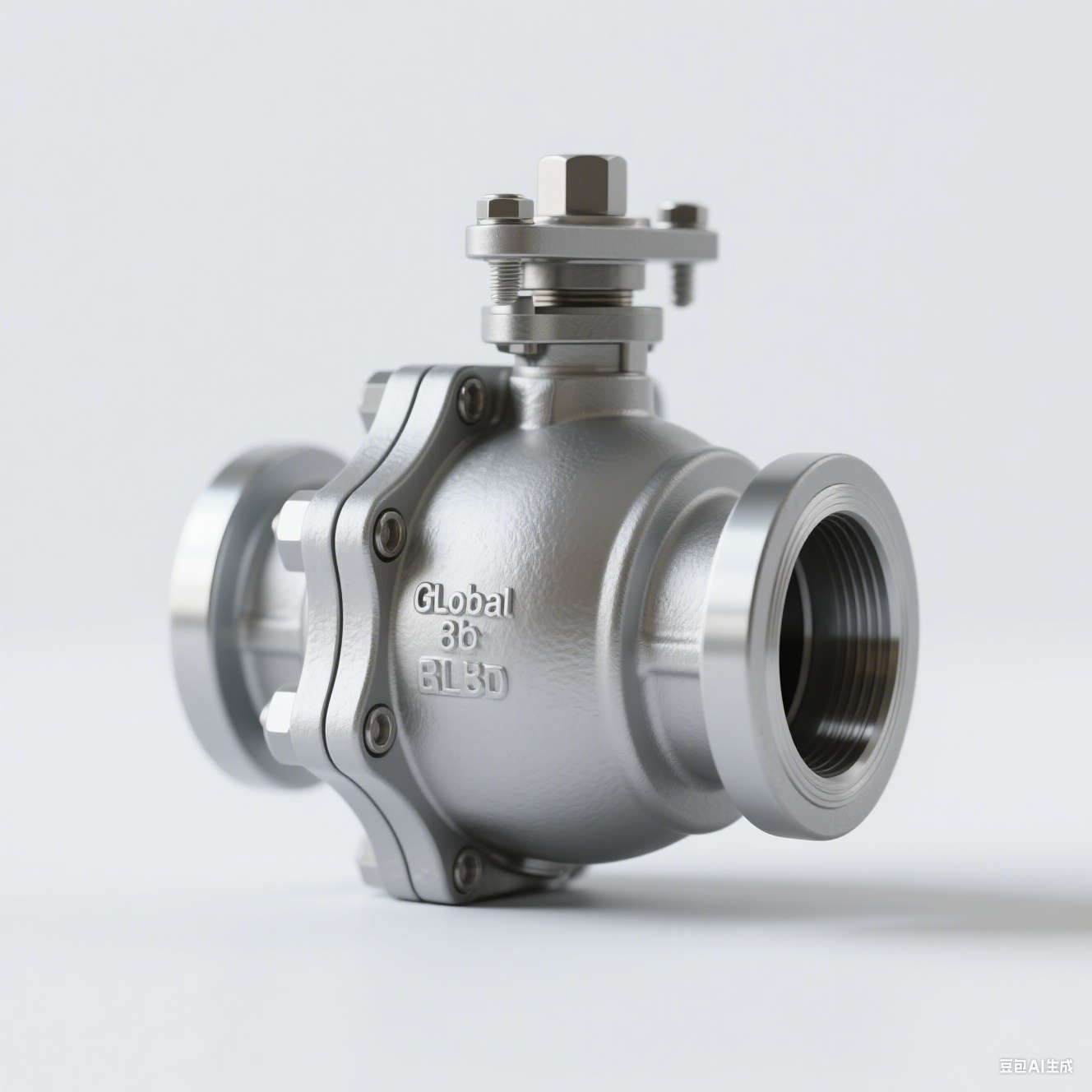

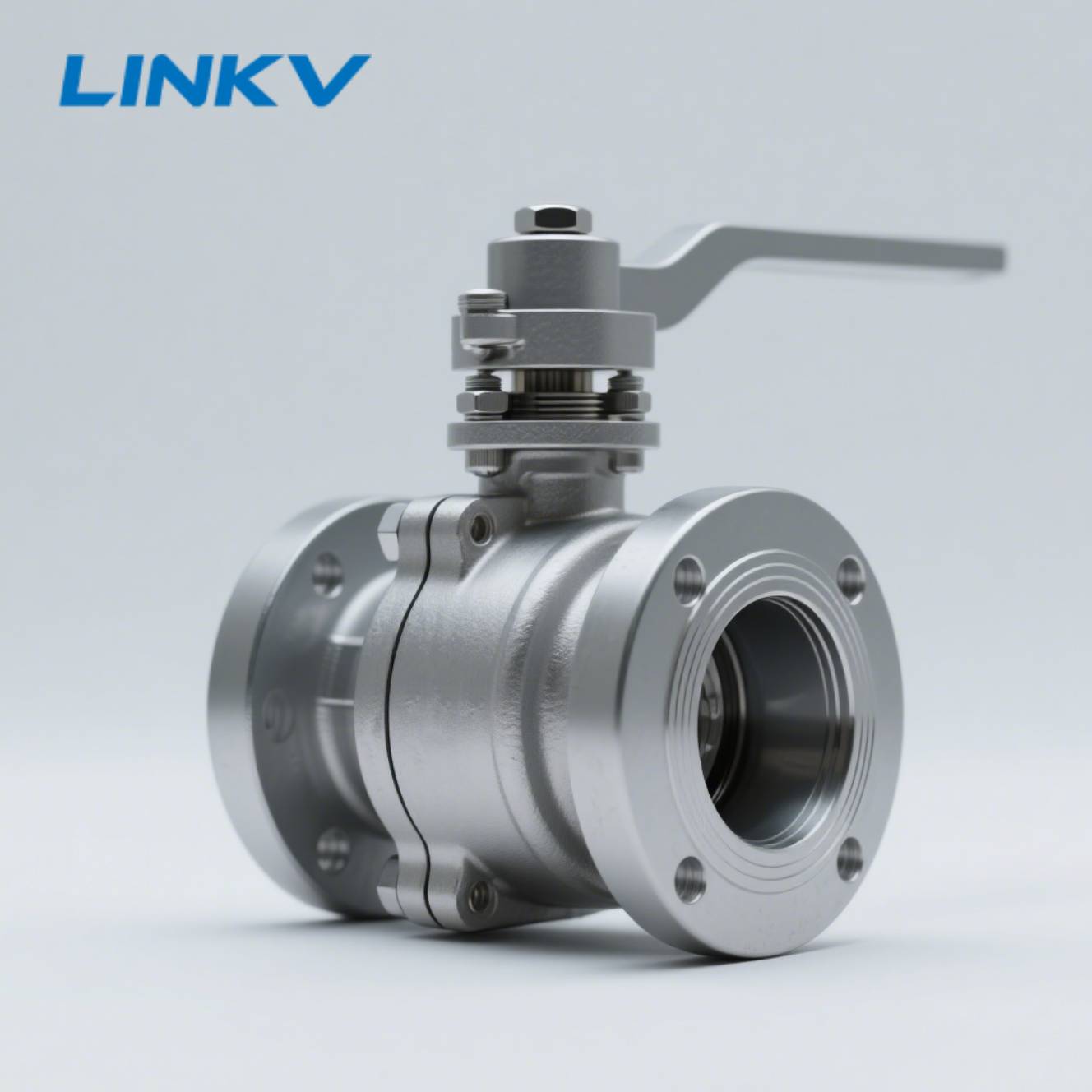

Stainless Steel Flanged Ball Valve with ISO 5211 Actuator Connector for Automation

ISO 5211 Mounted Flanged Ball Valves for Automation

LINKV Valve produces stainless steel flanged ball valves with integrated ISO 5211 direct mounting pads, designed specifically for automated flow control in industrial applications. Founded in 2009, the company manufactures valves compliant with CE, API, and ISO standards, with products exported to industrial clients across Europe, the Middle East, and Southeast Asia. The ISO 5211 mounting pad eliminates the need for custom brackets and couplers when installing pneumatic or electric actuators, reducing assembly time and alignment issues in automated systems. These 2-piece flanged ball valves cover DN15-DN100 (1/2"-4") sizes, with PN16/PN40 pressure ratings for general industrial process piping. All valves undergo 100% testing per API 598 standards prior to shipment, with documentation available for commercial procurement and system commissioning.

Material Specifications

Pressure Boundary Materials

All pressure-containing components are investment cast from CF8 (304) or CF8M (316) stainless steel, with material traceability maintained throughout production. The ISO 5211 mounting pad is integrally cast and machined to standard dimensions for direct actuator fitment.

Sealing System Materials

The live-loaded packing design maintains consistent stem sealing during thermal cycling and actuator cycling. Standard seats are PTFE, with optional reinforced materials available for specific applications.

Technical Parameters

Pressure Temperature Ratings

Dimensional and Testing Standards

Design Features

Direct Mounting System

The integral ISO 5211 mounting pad provides a standardized interface for pneumatic and electric actuators. This design eliminates bracket fabrication, reduces overall assembly height, and improves stem-to-actuator alignment, reducing side loading on the valve stem during operation. The mounting pad includes a standardized stem drive square that matches ISO 5211 dimensions, allowing direct coupling to most commercially available quarter-turn actuators.

Operational Features

All valves include blow-out proof stem design for pressure containment safety. Live-loaded stem packing uses disc springs to maintain seal force during temperature cycles and repeated actuation cycles, extending maintenance intervals in automated service. Anti-static devices are included as standard to provide electrical continuity between ball, stem, and body, preventing static charge buildup in flammable media service. A locking lever handle is provided for manual override during commissioning or maintenance.

Automated System Use Cases

These valves are designed for process systems requiring automated flow control, including: water and wastewater treatment plants, chemical processing with non-aggressive media, HVAC and building automation systems, industrial utility piping, power plant auxiliary systems, and general process automation applications. The direct mounting design reduces installed cost for automated valve packages in commercial and industrial facilities. 316 stainless steel versions are suitable for mild corrosive environments and chloride-containing water service.

Ordering and Delivery

Standard production lead time is 20-30 working days for bare shaft valves with ISO 5211 pads. Valves can be supplied pre-assembled with pneumatic or electric actuators upon request, with additional lead time for actuator sourcing and assembly. Minimum order quantity is 10 pieces per size for standard configurations. Valves are packaged in export plywood cases with protective end caps on flange faces. Shipping terms include EXW, FOB, CFR, and CIF from Ningbo or Shanghai ports. Payment terms are 30% T/T prepayment with 70% balance prior to shipment, or L/C at sight. All valves carry a 12-month warranty from installation date. Actuator warranty is provided per the original actuator manufacturer terms.

FAQ

What actuators are compatible with the ISO 5211 mounting interface?

The standardized ISO 5211 mounting pad and stem square are compatible with most quarter-turn pneumatic and electric actuators from major manufacturers. Confirm mounting flange size (F03-F12) and stem square dimensions match your selected actuator model.

Does the direct mounting design require additional coupling hardware?

No, the integral ISO 5211 pad allows direct mounting of actuators without custom brackets or couplers. A standard drive insert matches the valve stem square to the actuator output drive.

What is the maximum actuation cycle life for these valves?

Cycle life varies with operating pressure, temperature, and media. Under standard water service at rated pressure, PTFE seated valves typically provide 10,000+ actuation cycles before seat replacement is required.

Can manual override be used with the actuator installed?

The standard locking lever can be removed prior to actuator installation. For manual override with actuator in place, select an actuator with a handwheel override option, or install a declutchable gear operator.

Are fire-safe designs available for these valves?

Fire-safe construction per API 607 is available as an option, with graphite gaskets and secondary metal-to-metal seating for fire exposure conditions. Specify fire-safe requirements at time of quotation.
