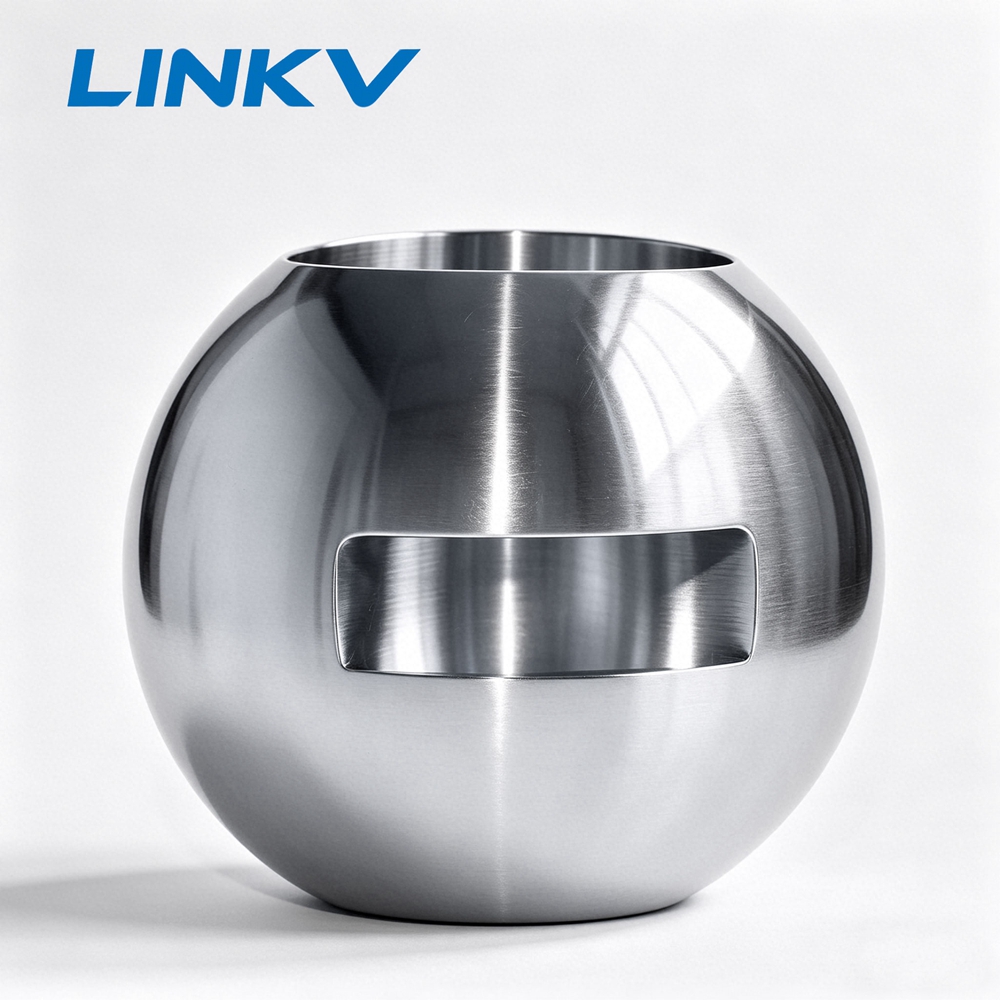

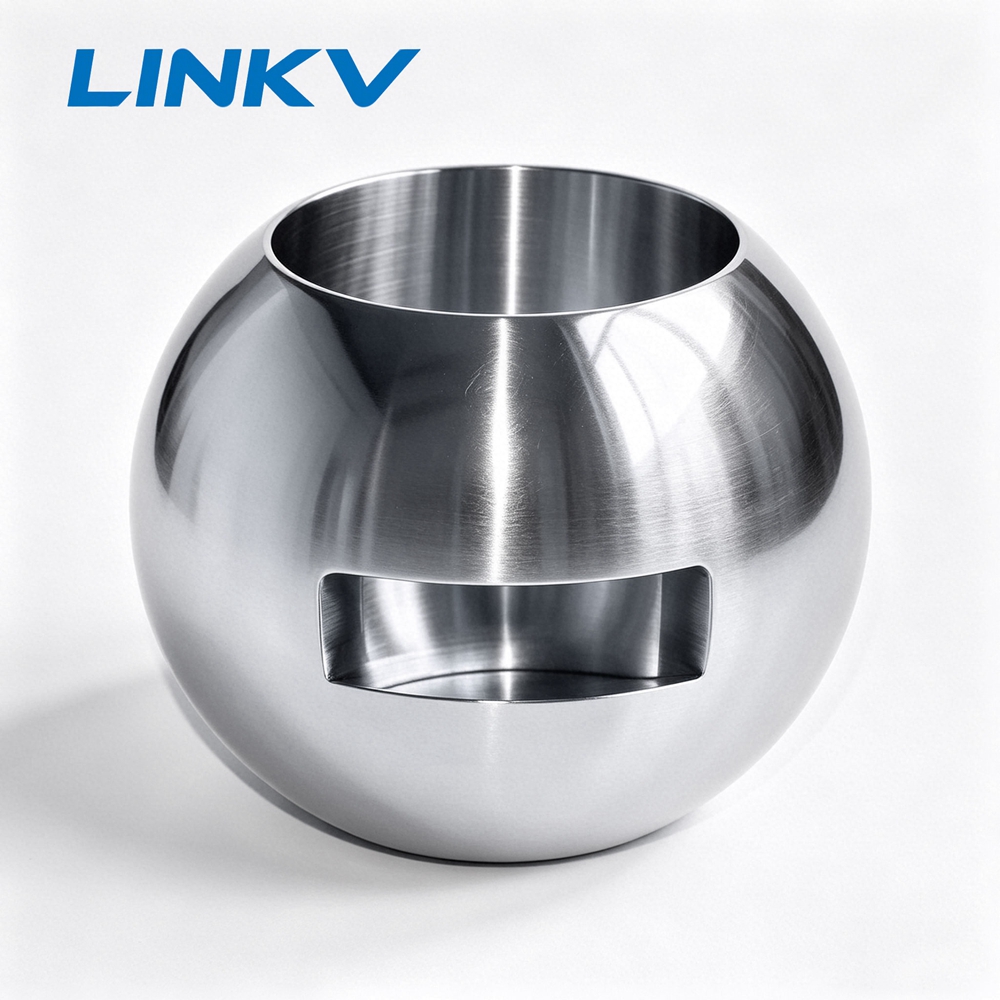

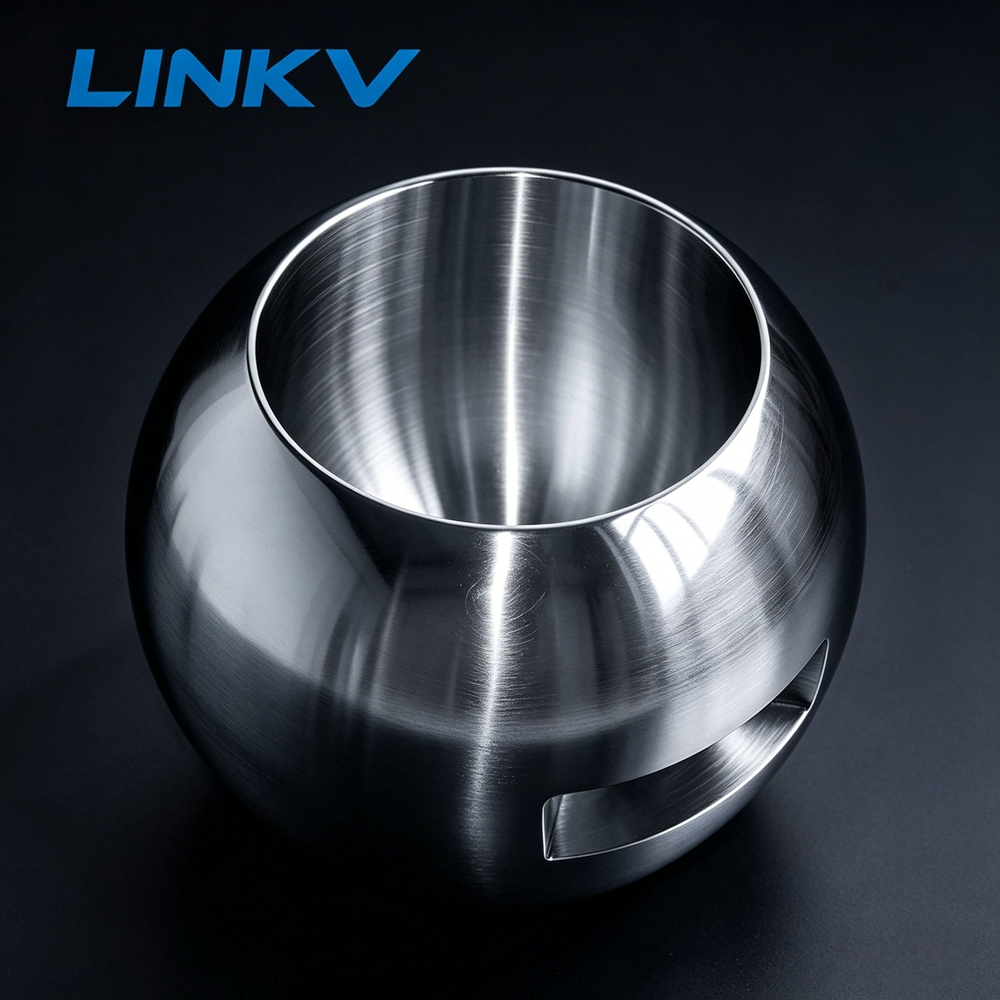

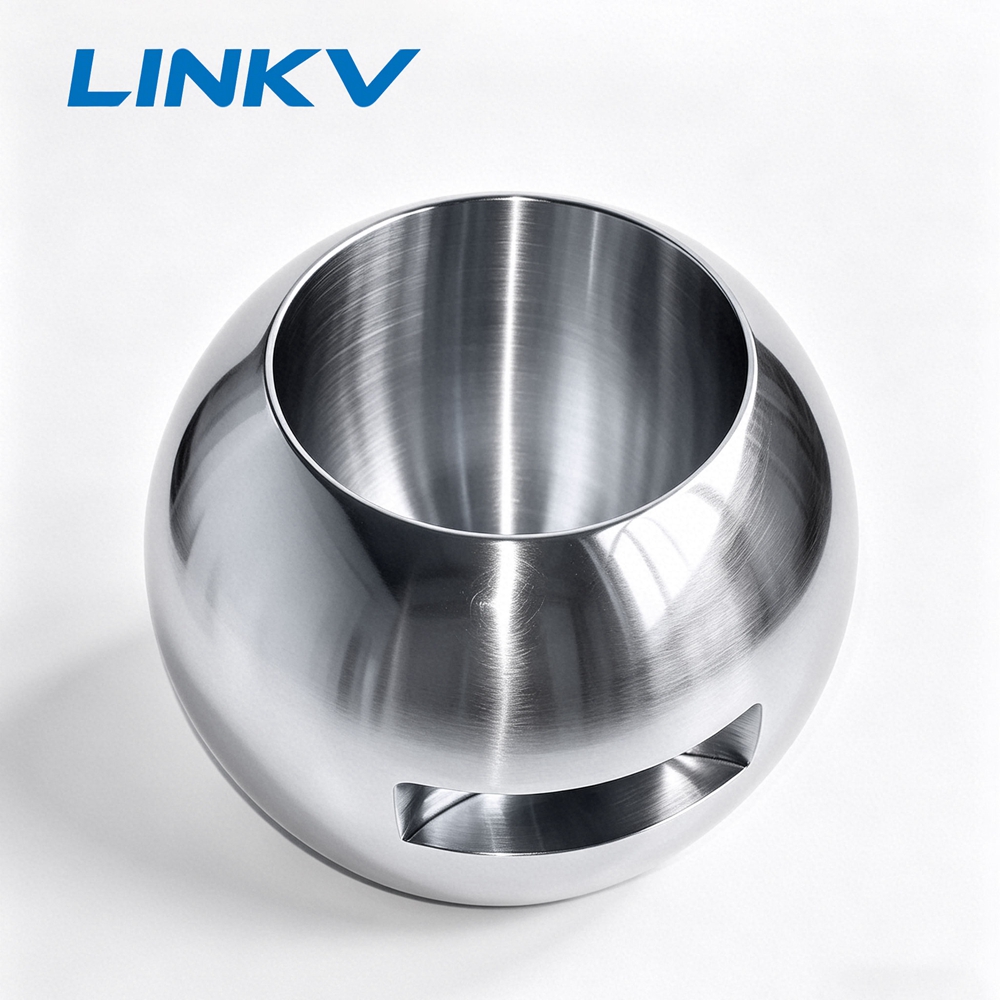

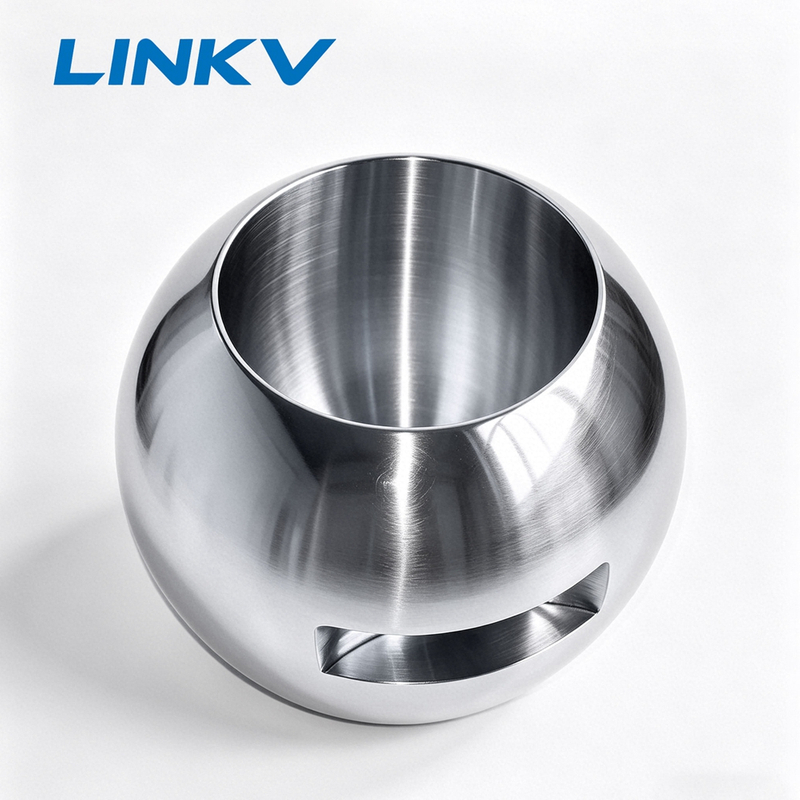

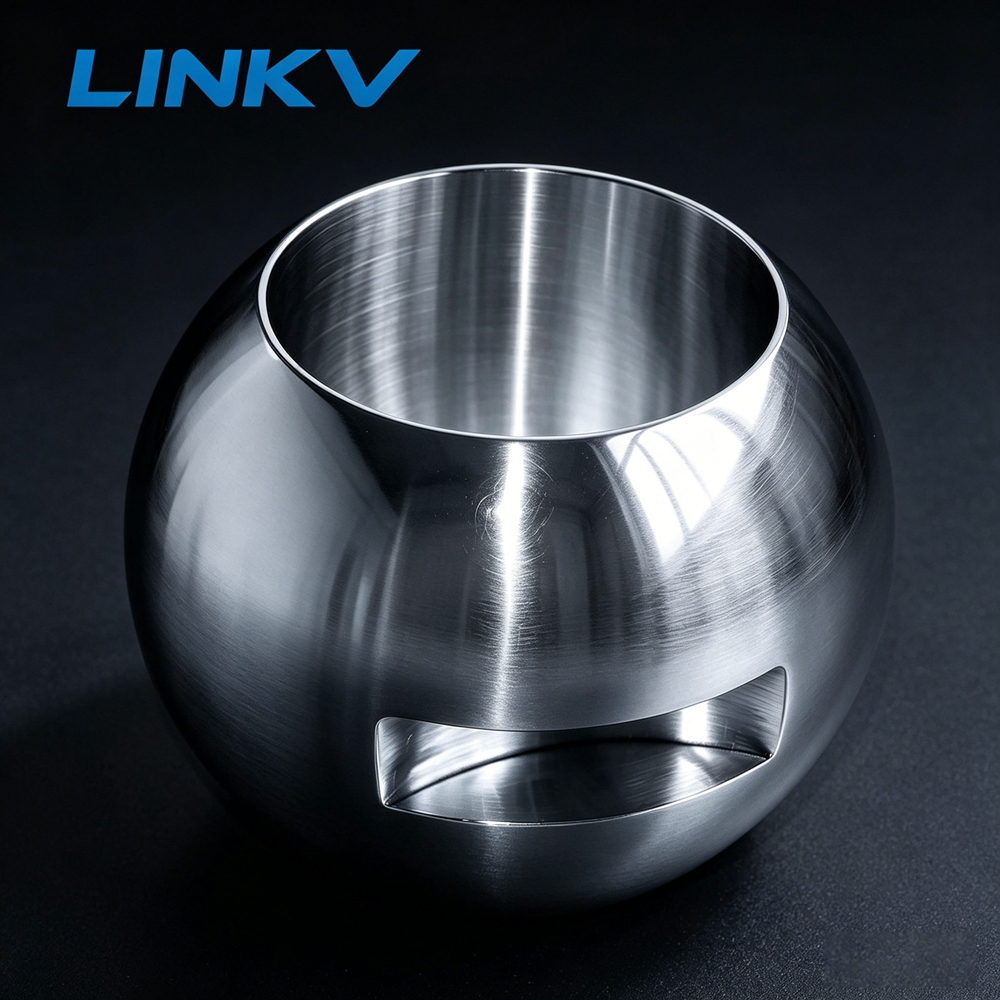

The G10 high-polished 316L ball core is a precision spherical component designed for installation in gas shut-off valves. It functions as the primary flow control element, rotating 90 degrees to open or close the gas flow path. The G10 precision grade indicates tight sphericity tolerances, which contribute to consistent sealing performance in gas service applications.
Gas shut-off valves require dependable sealing to prevent unintended gas leakage. The high-polished surface finish of G10 ball cores provides uniform contact with valve seat materials, supporting tight shut-off performance when the valve is in the closed position.
G10 precision grade means the ball is manufactured to sphericity tolerances of 0.001 mm. This level of dimensional accuracy supports even distribution of contact pressure across the valve seat surface, which is important for achieving low leakage rates in gas applications.
316L stainless steel construction provides corrosion resistance suitable for natural gas, liquefied petroleum gas (LPG), and many industrial gas streams. The low carbon content (L designation) reduces the risk of carbide precipitation during welding or high-temperature exposure, supporting structural integrity in assembled valve bodies.
The ball cores are manufactured from 316L stainless steel (SUS316L), produced in accordance with ASTM A276 standard specifications. The low carbon variant (316L) contains a maximum of 0.03% carbon, which improves resistance to intergranular corrosion after exposure to elevated temperatures.
Each production batch is accompanied by material test reports documenting chemical composition, mechanical properties, and heat treatment conditions. Material traceability is maintained throughout the manufacturing process to support quality verification for commercial procurement and quality assurance teams.
316L stainless steel is compatible with most common industrial gases, including natural gas, propane, compressed air, nitrogen, and carbon dioxide. It provides resistance to moisture and trace contaminants typically found in gas distribution systems. For gases with specific corrosive components, such as hydrogen sulfide or chlorine, additional material evaluation is recommended to confirm long-term compatibility.
The polished surface finish also reduces the potential for particle accumulation on the ball surface, which can affect sealing performance over time in gas systems with particulate content.
Parameter | Specification |
|---|---|
Product Name | G10 High-Polished 316L Ball Core |
Application | Gas shut-off valve spare parts |
Ball Type | Floating straight-through O-type |
Material Grade | 316L stainless steel (ASTM A276) |
Standard | ANSI B16.34, API 598 compatible |
Precision Grade | G10 |
Surface Roughness | Ra 0.1 μm (high polished) |
Sphericity Tolerance | 0.001 mm |
Diameter Range | 10 mm - 80 mm (DN10 - DN80) |
Hardness | 150 HB - 200 HB (annealed condition) |
Carbon Content | Maximum 0.03% (L-grade) |
Color / Finish | Mirror silver, high-polished surface |
Pressure Rating | Up to PN63 (1000 WOG) depending on valve assembly |
Temperature Range | -25°C - 180°C (with PTFE seats) |
Suitable Media | Natural gas, LPG, compressed air, nitrogen |
Packaging | Carton boxes with individual protective wrapping |
Origin | China |
Manufacturing begins with 316L stainless steel bar stock or forged blanks, which are rough machined on CNC lathes to achieve approximate spherical shape. Subsequent precision grinding operations use dedicated spherical grinding equipment to bring dimensions within G10 tolerance ranges.
The high-polish finish is achieved through multi-stage lapping processes using progressively finer abrasive compounds. The production facility is equipped with CNC lathes, spherical grinding machines, automatic lapping machines, and polishing equipment to achieve the required surface finish and dimensional accuracy.
G10 grade ball cores undergo rigorous inspection at each production stage. Material verification includes mobile direct-reading spectrometers to confirm 316L chemical composition, particularly the low carbon content requirement. Dimensional inspection uses coordinate measuring machines (CMM) and roundness measuring instruments to verify G10 sphericity tolerances.
Surface roughness is measured using profilometers to confirm Ra 0.1 μm or finer finish. Additional gas-specific quality checks include visual inspection under magnification for surface pits, scratches, or defects that could affect sealing performance in gas applications. All inspection results are documented for batch traceability.
G10 high-polished 316L ball cores are installed in gas shut-off valves across municipal gas distribution networks, where reliable shut-off performance supports pipeline safety and maintenance operations. They are also used in industrial plant gas supply systems, including natural gas lines for process heating and power generation equipment.
In commercial building systems, these ball cores are found in gas shut-off valves for heating equipment, kitchen systems, and backup power generators. The 316L stainless steel construction supports long service life in typical gas distribution environments.
The ball cores are suitable for use with dry gases including natural gas, liquefied petroleum gas, compressed air, nitrogen, and carbon dioxide. They are also compatible with many inert and non-corrosive industrial gases.
Operating temperature ranges depend on the complete valve assembly, particularly the seat material. With PTFE seats, the typical operating range is -25°C to 180°C. Pressure ratings vary with valve size and body design; common configurations support pressures up to PN63 for smaller diameter valves. For high-pressure gas systems, valve assembly ratings should be verified with the valve manufacturer.
G10 is a precision grade classification indicating a sphericity tolerance of 0.001 mm. For gas shut-off valves, this level of spherical accuracy means the ball makes uniform contact with the seat circumference, which supports consistent sealing performance and lower leakage rates. G10 grade is commonly specified for gas service applications where shut-off reliability is a priority requirement.
316L stainless steel is suitable for most common industrial gases including natural gas, LPG, compressed air, nitrogen, and carbon dioxide. It provides good resistance to moisture and typical pipeline contaminants. For gases containing corrosive components such as hydrogen sulfide, chlorine, or high moisture levels with chloride content, additional material compatibility evaluation is recommended. For highly corrosive gas applications, alternative materials such as duplex stainless steel or nickel alloys may be more appropriate.
For gas service applications, a high-polished surface finish of Ra 0.1 μm or finer is typically specified. The smooth surface reduces friction during valve operation and supports better sealing with soft seat materials like PTFE, RPTFE, or PEEK. A finer surface finish also reduces the potential for particle entrapment that could cause seat damage or increased leakage over the valve service life.
Yes, custom dimensions and modified specifications can be produced for specific project requirements. Available options include non-standard diameters, custom through-hole sizes, alternative precision grades, and special surface treatments. Minimum order quantities and lead times vary depending on the complexity of the modification and current production schedules. Detailed specifications and quantity requirements should be provided at the time of inquiry to receive accurate pricing and delivery information.
