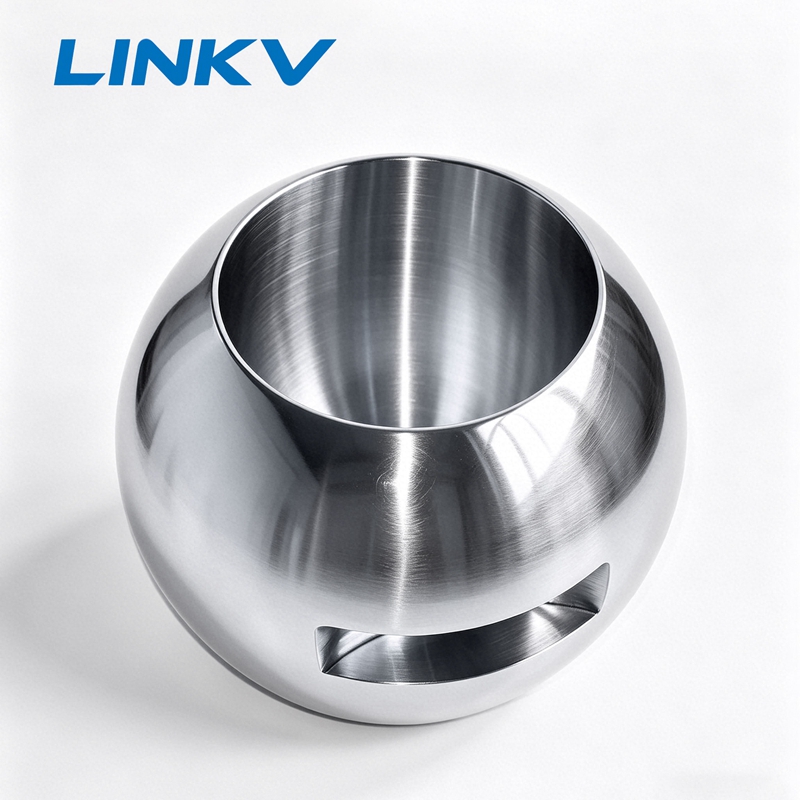

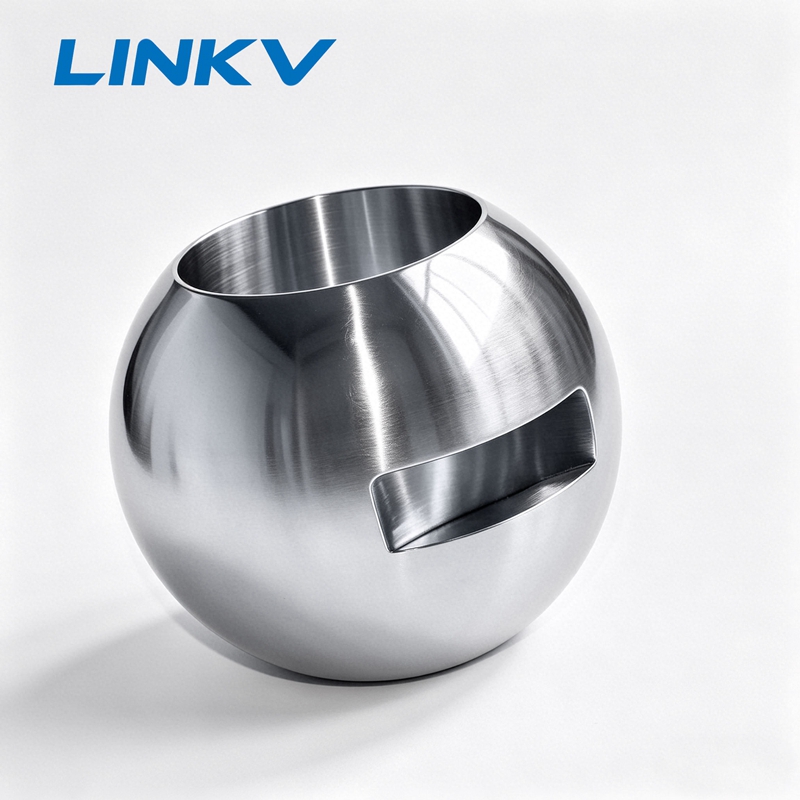

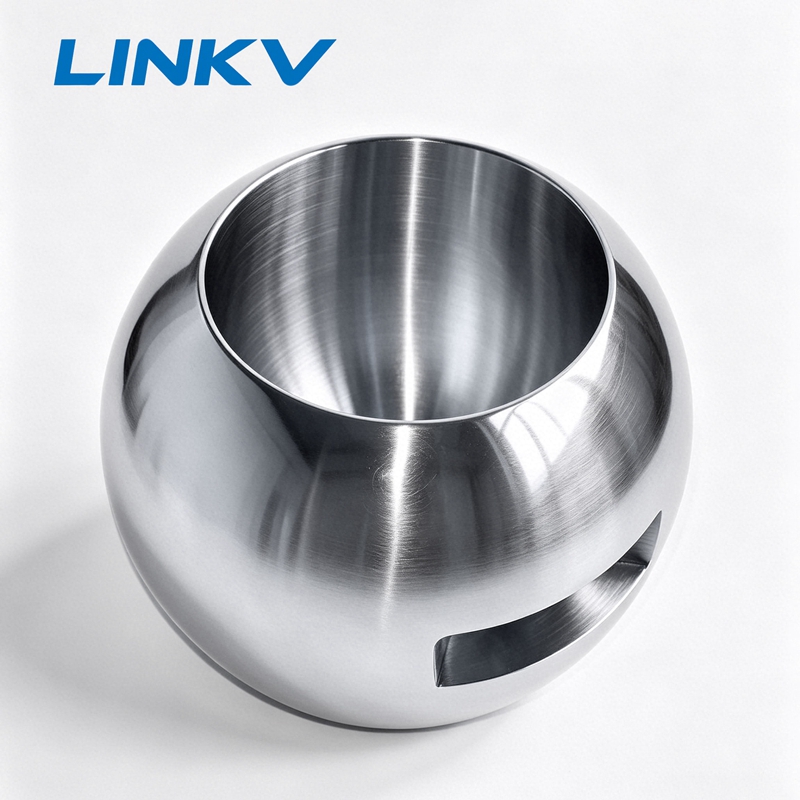

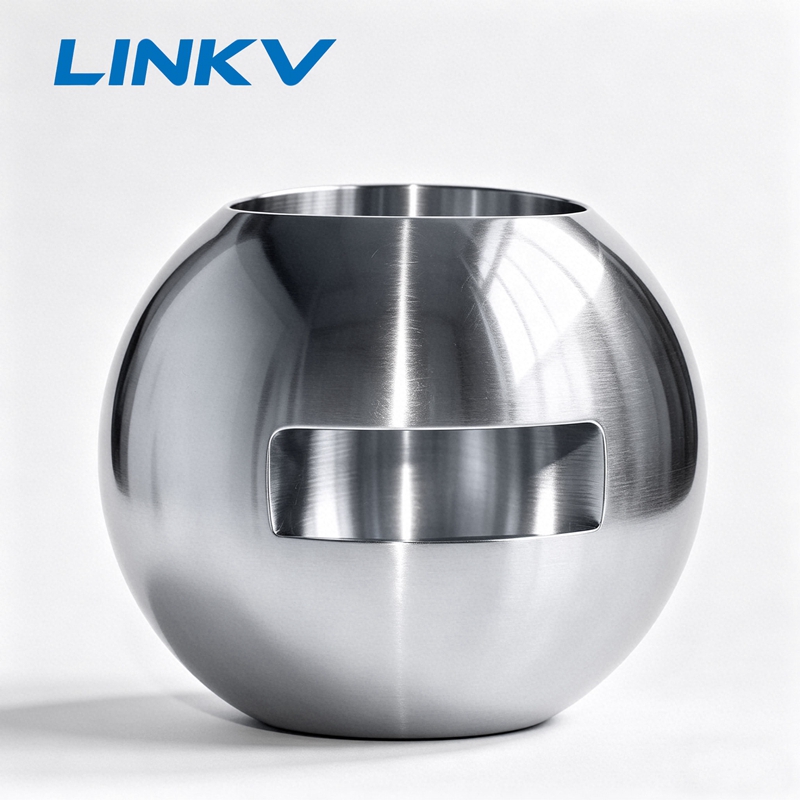

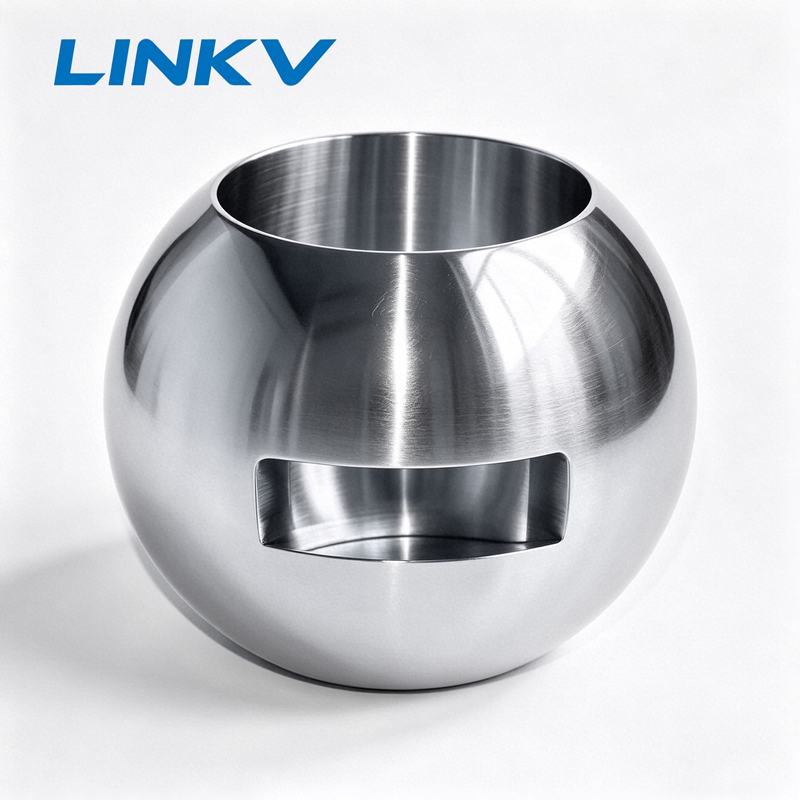

The precision ground stainless steel valve ball serves as the core shut-off component in solenoid valve assemblies. It features a standard circular through-hole structure that achieves media on-off control through 90-degree rotation. The spherical geometry provides uniform contact with valve seats, supporting consistent sealing performance across repeated actuation cycles.
Solenoid valves require fast response times and consistent actuation force. Precision ground valve balls meet these requirements through tight dimensional tolerances and uniform surface finish, which contribute to stable torque requirements and predictable valve operation.
Precision grinding processes produce spherical surfaces with consistent dimensional accuracy. This accuracy supports proper alignment within solenoid valve bodies, reducing the risk of seat misalignment and uneven wear during operation. The smooth surface finish also minimizes friction between the ball and seat materials during switching cycles.
Stainless steel construction provides compatibility with a range of common industrial media. The material properties support operation across typical commercial fluid control systems, including water, hydraulic oils, and compressed air lines.
The valve balls are manufactured from stainless steel grades selected for mechanical properties and corrosion resistance. Common material options include 304 (SUS304) and 316 (SUS316) stainless steel, produced in accordance with ASTM A276 standard specifications. Each material batch is traceable through mill test reports documenting chemical composition and mechanical properties.
Material selection depends on application requirements. 304 stainless steel provides general corrosion resistance for water and non-corrosive media. 316 stainless steel offers enhanced resistance to chloride environments and is commonly specified for chemical processing and marine applications.
Stainless steel valve balls form a passive chromium oxide layer on the surface, which provides corrosion resistance in many industrial environments. Actual corrosion performance varies with media concentration, temperature, and flow conditions. For specific corrosive applications, material compatibility testing is recommended to confirm suitability.
Parameter | Specification |
|---|---|
Product Name | Precision Ground Stainless Steel Valve Ball |
Application | Solenoid valve spare parts |
Ball Type | Floating straight-through O-type |
Material Grade | 304 / 316 stainless steel (ASTM A276) |
Standard | ANSI B16.34, API 598 compatible |
Precision Grade | G10 - G100 (selectable) |
Surface Roughness | Ra 0.1 - Ra 0.8 μm |
Sphericity Tolerance | 0.001 mm - 0.025 mm |
Diameter Range | 6 mm - 50 mm (DN6 - DN50) |
Hardness | 150 HB - 220 HB (annealed condition) |
Color / Finish | Silver metallic, ground surface |
Pressure Rating | Up to PN63 (1000 WOG) depending on valve assembly |
Temperature Range | -20°C - 180°C (with PTFE seats) |
Packaging | Carton boxes with protective lining |
Origin | China |
Production begins with forged or bar stock material, which undergoes rough turning on CNC lathes to achieve near-net shape. Subsequent grinding operations use dedicated spherical grinding machines to refine dimensional accuracy and surface finish. Final lapping processes further improve surface smoothness and sphericity.
The production facility is equipped with vertical machining centers, CNC lathes, spherical grinding machines, and lapping machines. Equipment capacity supports both standard size production and custom dimension requests from commercial procurement teams.
Each production batch undergoes inspection at multiple stages. Incoming material verification includes spectral analysis to confirm chemical composition. Dimensional inspection uses coordinate measuring machines (CMM) and specialized gauges to verify sphericity, diameter tolerance, and surface roughness.
Final inspection includes visual examination for surface defects, dimensional verification, and hardness testing. Products meeting all specification requirements proceed to packaging and shipment. Inspection records are maintained for production traceability.
Precision ground valve balls are used in solenoid valves across multiple industrial sectors. Common applications include automated fluid control systems in water treatment facilities, where consistent on-off performance supports process reliability. They are also installed in pneumatic control systems for manufacturing equipment, where fast response times contribute to production efficiency.
In commercial building systems, these valve balls are found in HVAC solenoid valves for heating and cooling circuits. The stainless steel construction supports long-term operation with water-based heat transfer fluids.
Suitable media include water, hydraulic oils, compressed air, and many weakly corrosive fluids. Compatibility with specific chemicals should be verified based on concentration and temperature conditions.
Operating temperature and pressure limits depend on the complete valve assembly, including seat material and body construction. With PTFE valve seats, typical operating ranges extend from -20°C to 180°C. Pressure ratings vary with valve size and design, with common ratings up to PN63 for smaller diameter valves.
Standard production offers precision grades ranging from G10 to G100. G10 grade provides the tightest sphericity tolerance at 0.001 mm and is specified for high-performance solenoid valves requiring minimal actuation torque variation. G25 and G40 grades are common for general industrial applications. The appropriate grade depends on valve design requirements and sealing performance specifications.
For gas service applications, surface roughness of Ra 0.2 μm or finer is typically recommended. Smoother surface finishes support more consistent sealing with soft seat materials such as PTFE and RPTFE. The required finish also depends on the seat material and operating pressure. Higher pressure systems generally require finer surface finishes to achieve acceptable leak rates.
316 stainless steel is the standard choice for mildly corrosive environments, including those with moderate chloride content. For more aggressive chemical applications, alternative materials such as duplex stainless steel (F51) or nickel-based alloys may be specified. Material selection should be based on the specific chemical composition, concentration, and temperature of the process fluid.
Standard pre-shipment testing includes dimensional verification of all critical parameters, surface roughness measurement, hardness testing, and visual inspection for surface defects. For custom orders or specific project requirements, additional testing such as pressure testing, material certification verification, or dimensional reporting can be arranged at the time of order placement.
